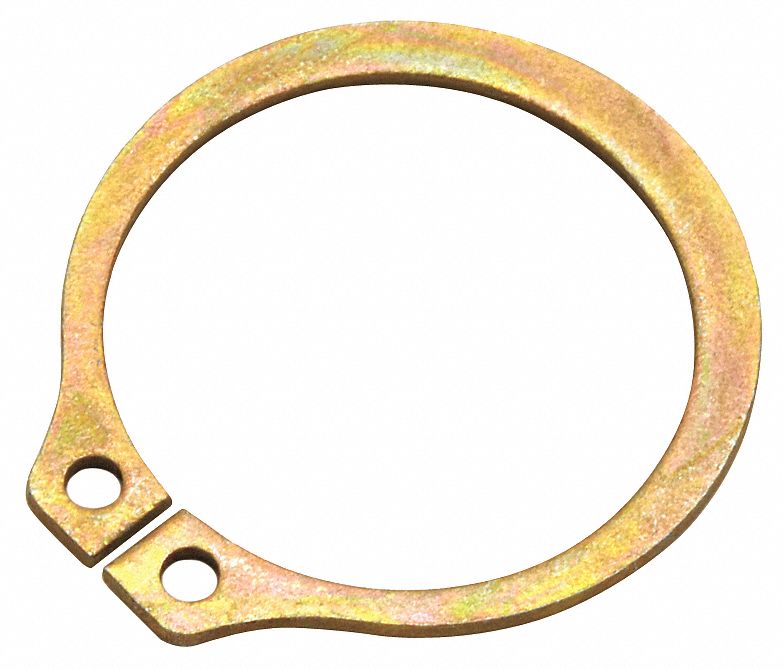

Rotor Clip Standard Retaining Ring, External, 1 11/16 in For Shaft Dia., For Bore Dia. - SH-168ST ZD
Availability : Usually Ships in 7-10 Business Days
Standard Retaining Ring; Type: External; Material: Carbon Steel; Finish: Yellow Zinc; For Shaft Dia.: 1 11/16 in; Free I.D.: 1.56 in; Thickness: 0.062 in; Thickness Tolerance: +/-0.003 in; Fits Groove Dia.: 1.589 in; Groove Dia. Tolerance: +/-0.005 in; Fits Groove Width: 0.068 in; Groove Width Tolerance: +0.004 in; Fits Groove Depth: 0.049 in; Clearance Dia. (Expanded): 2.24 in; Clearance Dia. (Released): 2.15 in; Hole Dia.: 0.125 in; Tensile Strength (PSI): 150,000 psi; Rockwell Hardness: RC47-52; Meets/Exceeds: ASME; Package Quantity: 10
| Item | Standard Retaining Ring |
| Type | External |
| Material | Carbon Steel |
| Finish | Yellow Zinc |
| For Shaft Dia. | 1 11/16 in |
| Free I.D. | 1.56 in |
| Thickness | 0.062 in |
| Thickness Tolerance | +/-0.003 in |
| Fits Groove Dia. | 1.589 in |
| Groove Dia. Tolerance | +/-0.005 in |
| Fits Groove Width | 0.068 in |
| Groove Width Tolerance | +0.004 in |
| Fits Groove Depth | 0.049 in |
| Clearance Dia. (Expanded) | 2.24 in |
| Clearance Dia. (Released) | 2.15 in |
| Hole Dia. | 0.125 in |
| Tensile Strength (PSI) | 150,000 psi |
| Rockwell Hardness | RC47-52 |
| Meets/Exceeds | ASME |
| Package Quantity | 10 |
