Availability : Usually Ships in 3-5 Business Days
High-voltage lead wire is a small- to medium-gauge wire (22 to 14 AWG) with an insulated conductor used to create electrical connections and provide power in applications that require a high operating voltage (over 5000V), such as power supply units and electronic equipment.,Lead, hookup, and machine tool wire are thin, small- to medium-gauge (24 to 8 AWG) insulated wire used to establish internal electrical connections and provide power in appliances, motors, power tools, or other electronic equipment. They are commonly used in product assembly applications in manufacturing facilities.

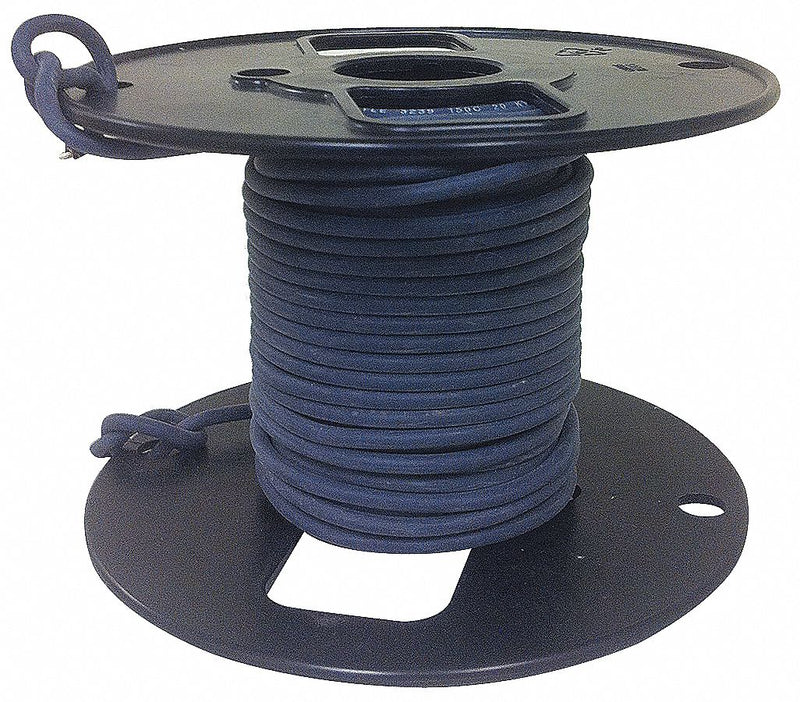

|Item||High Voltage Lead Wire|
|Wire Size||20 AWG|
|Insulation Material||Rowe R800 Silicone Compound|
|Conductor Material||Tin Plated Copper|
|Temp. Rating||302 Degrees F|
|Nominal Outside Dia.||0.12 in|
|Stranding||10 x 30|
|Standards||150C Rated, Meets UL VW-1 Requirements, UL 3239, UL Listed (File E61355) and RoHS Compliant|
