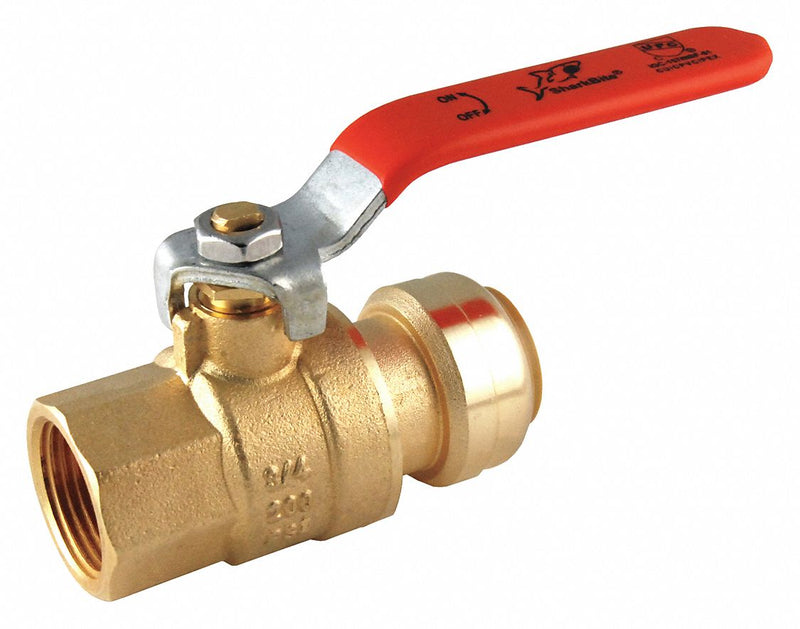

Ball Valve; Body Material: Lead-Free Brass; Body Style: Inline; General Connection Type: Female NPT; Valve Structure: 2-Piece; Pipe Size: 3/4 in; Tube Size: 3/4 in; Connection Type: FNPT x Push; Port: Full; Max. Pressure: 200 psi CWP; Max. Steam Pressure: 200 psi WSP; Temp. Range: 0 Degrees to 200 Degrees F; Ball Material: Lead Free Brass; Seat Material: PTFE; Stem Type: Blowout Proof; Handle Type: Lever; Handle Material: Zinc Plated Steel; Stem Material: Lead Free Brass; Body Seal Material: EPDM; Hose I.D.: 3/4 in; Ball Valve Product Group: Manual; Valve Basic Body Material: Brass; Standards: IAPMO, IPC, UPC, cUPC
Item | Ball Valve |
Body Material | Lead-Free Brass |
Body Style | Inline |
General Connection Type | Female NPT |
Valve Structure | 2-Piece |
Pipe Size | 3/4 in |
Tube Size | 3/4 in |
Connection Type | FNPT x Push |
Port | Full |
Max. Pressure | 200 psi CWP |
Max. Steam Pressure | 200 psi WSP |
Temp. Range | 0 Degrees to 200 Degrees F |
Ball Material | Lead Free Brass |
Seat Material | PTFE |
Stem Type | Blowout Proof |
Handle Type | Lever |
Handle Material | Zinc Plated Steel |
Stem Material | Lead Free Brass |
Body Seal Material | EPDM |
Hose I.D. | 3/4 in |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Brass |
Standards | IAPMO, IPC, UPC, cUPC |
