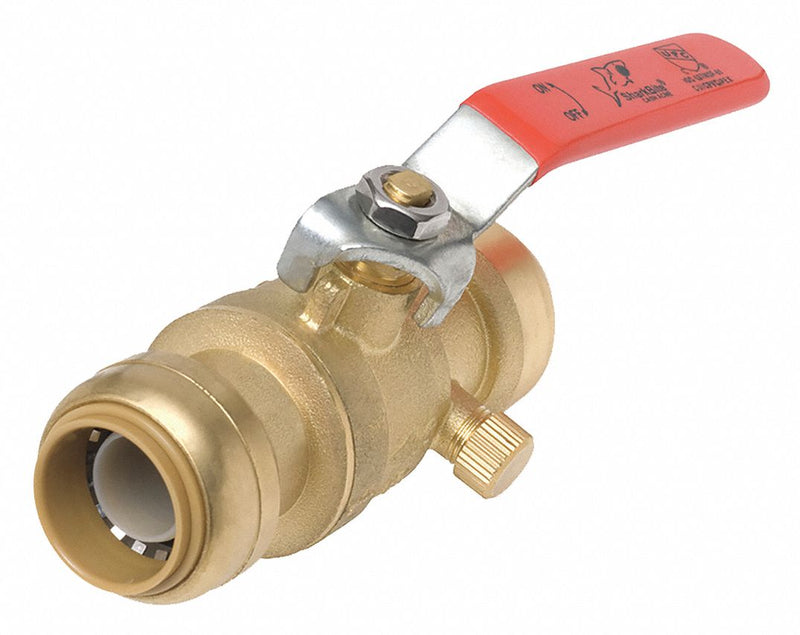

Features an easy-to-install connection that requires no clamps, glue, soldering, tools, or unions. Full-port design allows water to flow easily through the valve. Brass stem. Certified for use in potable water applications.
| Item | Ball Valve |
| Body Material | Lead-Free DZR Brass |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/4 in |
| Tube Size | 3/4 in |
| Connection Type | FNPT x Push |
| Port | Standard |
| Max. Pressure | 200 psi CWP |
| Max. Steam Pressure | 200 psi WSP |
| Temp. Range | 0 Degrees to 200 Degrees F |
| Ball Material | Lead Free Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel |
| Stem Material | Lead Free Brass |
| Body Seal Material | EPDM |
| Hose I.D. | 3/4 in |
| Features | With Drain |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | IAPMO, IPC, UPC, cUPC |
