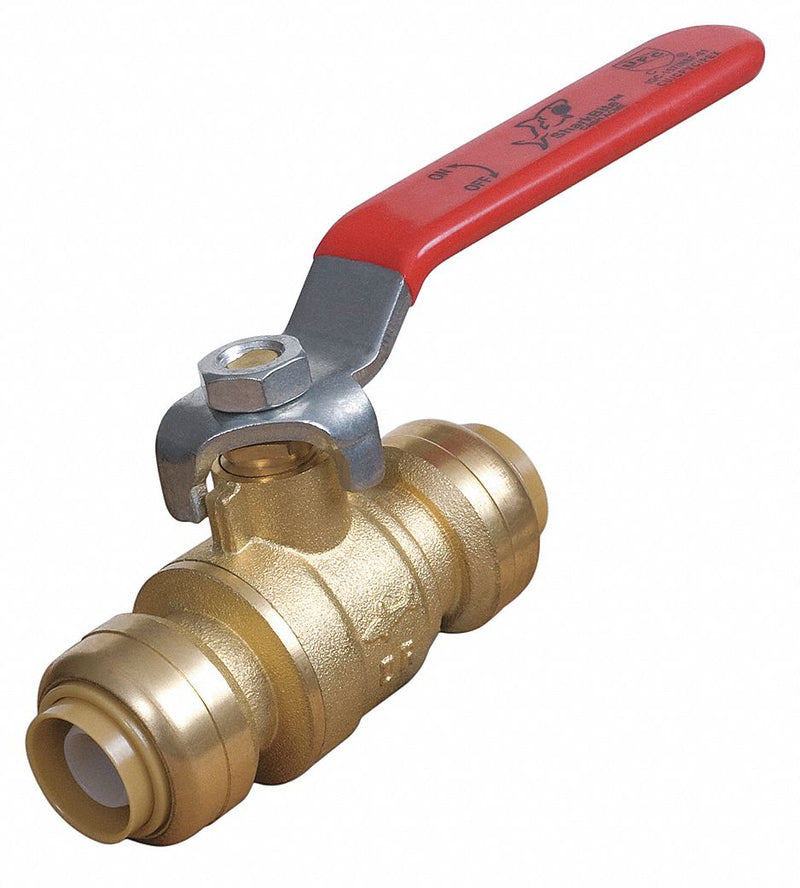

2-pc. full-port valve features a chrome- plated ball, PTFE seats, and EPDM O-ring seal. For use with copper, CTS CPVC, and PEX tubing. Use for commercial whole-house installations, water heater repairs, and sillcock or water filter replacement. Meets IAPMO, IGC-157, and NSF-61. No. 19F859.
| Item | Ball Valve |
| Body Material | Lead-Free Naval Brass, Arsenical |
| Body Style | Inline |
| General Connection Type | Push |
| Valve Structure | 1-Piece |
| Pipe Size | 1/2 in |
| Tube Size | 1/2 in |
| Connection Type | Push x Push |
| Port | Full |
| Max. Pressure | 200 psi CWP |
| Max. Steam Pressure | 200 psi WSP |
| Temp. Range | 0 Degrees to 200 Degrees F |
| Ball Material | Lead Free Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel |
| Stem Material | Lead Free Brass |
| Body Seal Material | EPDM |
| Hose I.D. | 1/2 in |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | IAPMO, IPC, UPC, cUPC |
| Overall Length | 3.06 in |
