Availability : Usually Ships in 14 Business Days

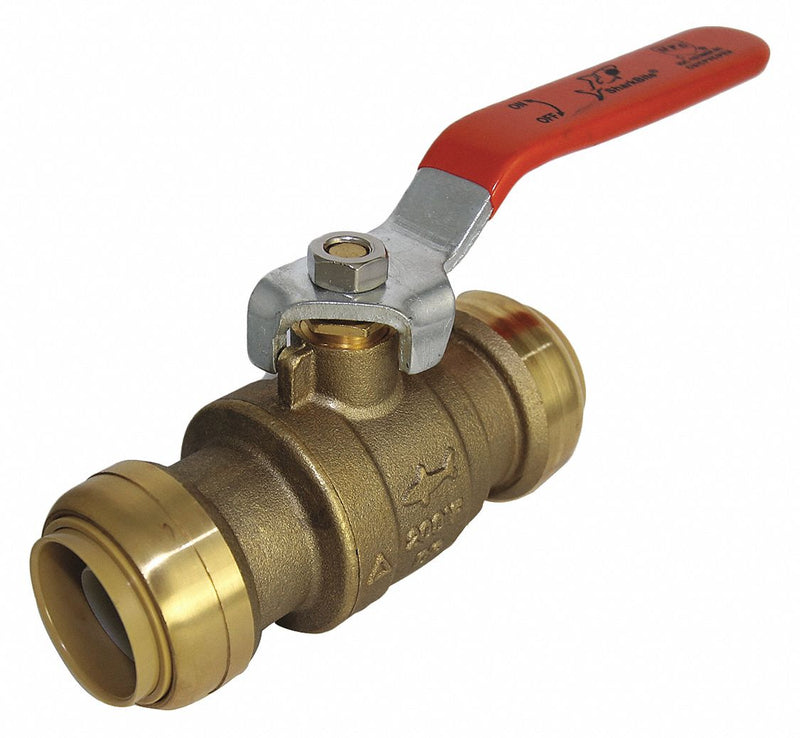

Low-Lead Instant Push-Fit Brass Ball Valves, Max. pressure: 200 psi WOG Temp. range: 0 to 200F,Easy-to-install connection requires no clamps, glue, soldering, tools, or unions. Full-port design allows water to flow easily through the valve. Brass body and stem and EPDM seals.,Certified for use in potable water applications. Meet ASSE 1061, cUPC, UPC, IAPMO, and IPC standards. NSF 61 Listed.
Item | Ball Valve |
Body Material | Lead-Free Naval Brass, Arsenical |
Body Style | Inline |
General Connection Type | Push |
Valve Structure | 2-Piece |
Pipe Size | 1 in |
Tube Size | 1 in |
Connection Type | Push x Push |
Port | Full |
Max. Pressure | 200 psi CWP |
Max. Steam Pressure | 200 psi WSP |
Temp. Range | 0 Degrees to 200 Degrees F |
Ball Material | Lead Free Brass |
Seat Material | PTFE |
Stem Type | Blowout Proof |
Handle Type | Lever |
Handle Material | Zinc Plated Steel |
Stem Material | Lead Free Brass |
Body Seal Material | EPDM |
Hose I.D. | 1 in |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Brass |
Standards | IAPMO, IPC, UPC, cUPC |
Overall Length | 4.4 in |
