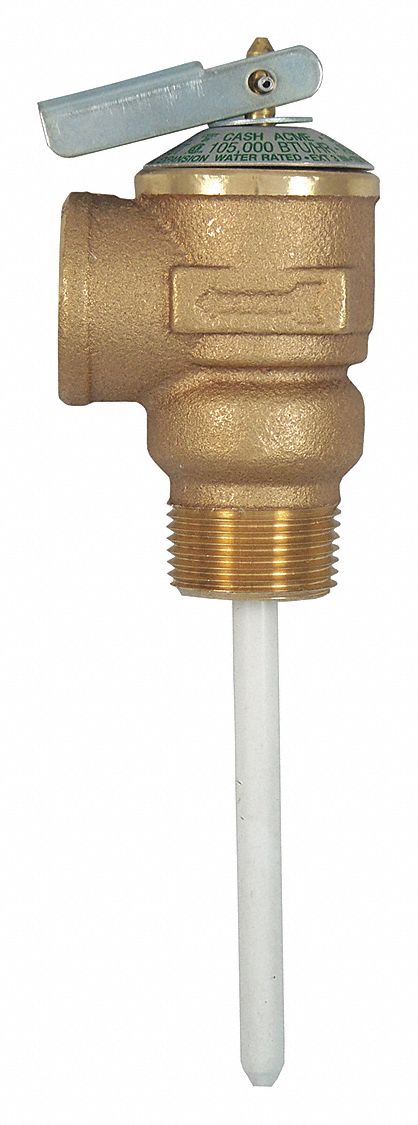

Temperature and Pressure Relief Valve; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Thermostat Length: 7 7/8 in; Body Height: 11 3/8 in; BtuH: 500,000; Factory Set Pressure: 150 psi; Max. Temp.: 210 Degrees F; Shank Length: 1-3/16 in; Auto Re-Seating: Yes; Body Material: Bronze; Spring Material: Stainless Steel; Body Width: 1 15/32 in; Standards: ANSI Z21.22, ASME, CSA; Compliance: ASME Boiler Code SECT IV
| Item | Temperature and Pressure Relief Valve |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Thermostat Length | 7 7/8 in |
| Body Height | 11 3/8 in |
| BtuH | 500,000 |
| Factory Set Pressure | 150 psi |
| Max. Temp. | 210 Degrees F |
| Shank Length | 1-3/16 in |
| Auto Re-Seating | Yes |
| Body Material | Bronze |
| Spring Material | Stainless Steel |
| Body Width | 1 15/32 in |
| Standards | ANSI Z21.22, ASME, CSA |
| Compliance | ASME Boiler Code SECT IV |
