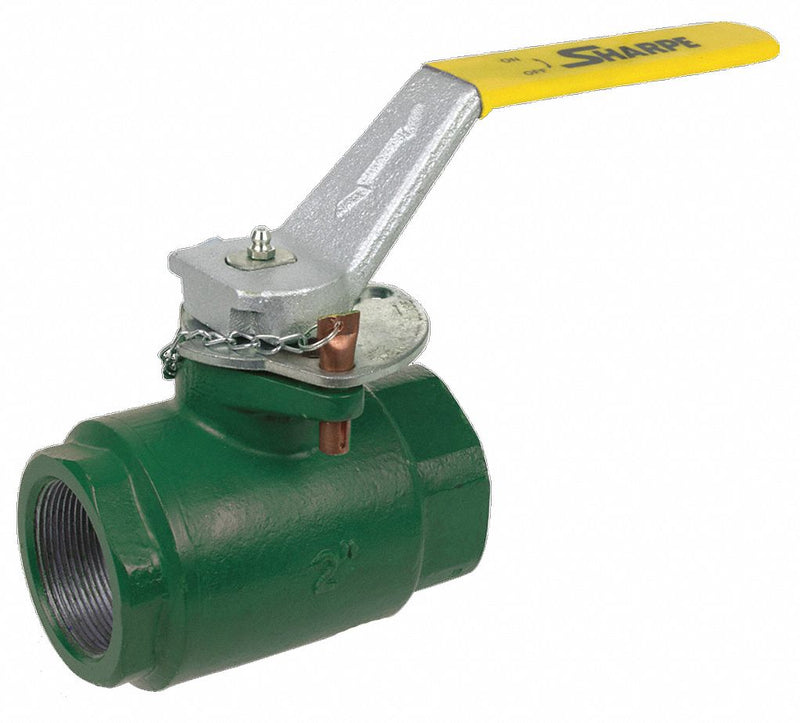

Sharpe Oil Patch Ball Valve, Ductile Iron, Inline, 2-Piece, Pipe Size 2 in - SVOP54DB6RV020
filler
Availability : Usually Ships in 3-5 Business Days
This oil patch ball valve features ductile iron construction for more resistance to impact and fatigue when compared to cast iron. The microstructure of ductile iron helps prevent the formation of small cracks, which in turn, helps provide enhanced ductility. The blowoutproof stem features a double O-ring seal, and is suitable for use in oil patch flow lines and tank battery hookups.
| Item | Oil Patch Ball Valve |
| Body Material | Ductile Iron |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 2 in |
| Connection Type | FNPT x FNPT |
| Port | Standard |
| Max. Pressure | 2000 psi CWP |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Ball Material | 420 Stainless Steel |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Locking Lever |
| Handle Material | Ductile Iron |
| Stem Material | 420 Stainless Steel |
| Body Seal Material | FPM |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Cast Iron, Ductile Iron |
| Standards | NACE MR-01-75 |
| Overall Length | 11.27 in |
