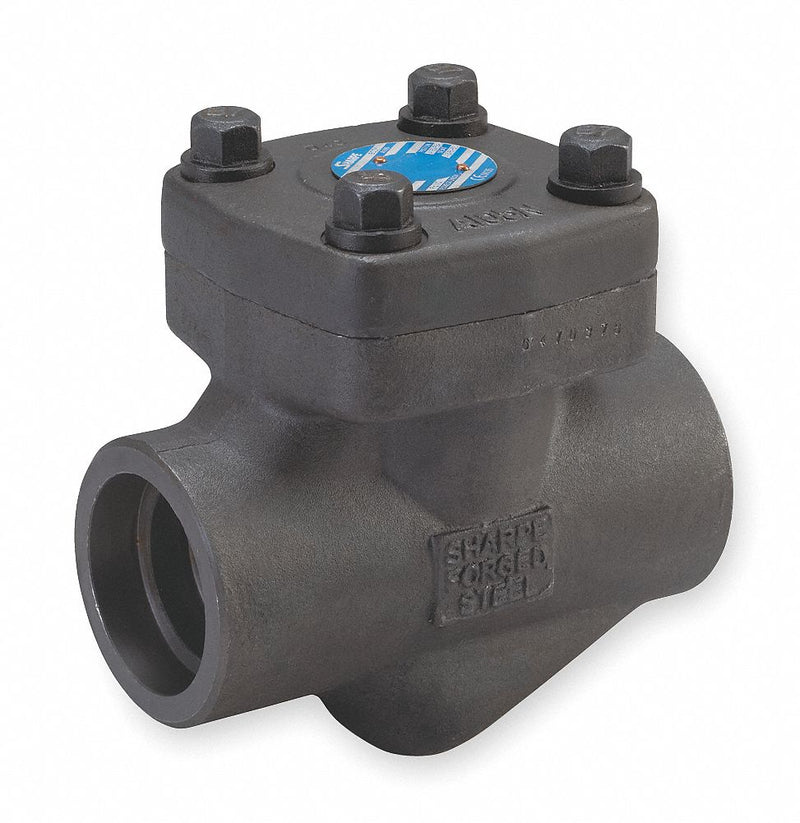

Ideal for use with pumps and in metering, blending, and steam trap applications this piston check valve features a bolted cap and is intended for higher-pressure applications., Class 800,Stainless steel spring for long life
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Piston |
| Body Material - Valves | Carbon Steel |
| Pipe or Tube Size - Check Valves | 1 1/2 in |
| Connection Type - Check Valves | Socket x Socket |
| Cracking Pressure - Check Valves | 24 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | 304 Stainless Steel, Graphite |
| Max. Temp. - Valves | 800 Degrees F |
| Min. Temp. - Valves | 0 Degrees F |
| Max. Water Pressure - Valves | 2000 psi @ 100 Degrees F |
| Max. Steam Pressure - Valves | 800 psi WSP |
| Seat Material - Check Valves | Stellite |
| Spring Material - Check Valves | 316 Stainless Steel |
| Flow - Valves | 38 gpm |
| Full Flow - Valves | No |
| Application - Valves | General Purpose |
| Length | 6 in |
| Cap to Inlet Center | 3 25/64 in |
| Standards | API 602, NACE MR-01-75 |
