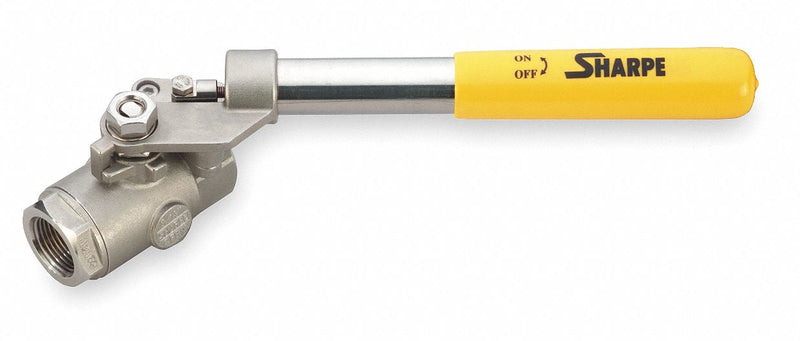

Sharpe Ball Valve, 316 Stainless Steel, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - SV54576DMH004

Sharpe ValvesSKU: C1934057
MPN : SV54576DMH004
Weight : 1.3 lb

filler

Price:
$167.11 $269.54

Availability : Usually Ships in 10 Business Days

This ball valve features 316 Stainless Steel construction. 316 Stainless Steel offers higher corrosion resistance than 304 stainless steel. It includes up to 3% molybdenum, which helps prevent corrosion from many industrial chemicals and solvents.

ItemBall Valve
Body Material316 Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure2000 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range0 Degrees to 400 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLocking Lever
Handle Material304 Stainless Steel with PVC Grip
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
FeaturesActuator Mounting Pad
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsASTM A351 CF8M
Overall Length2.32 in
