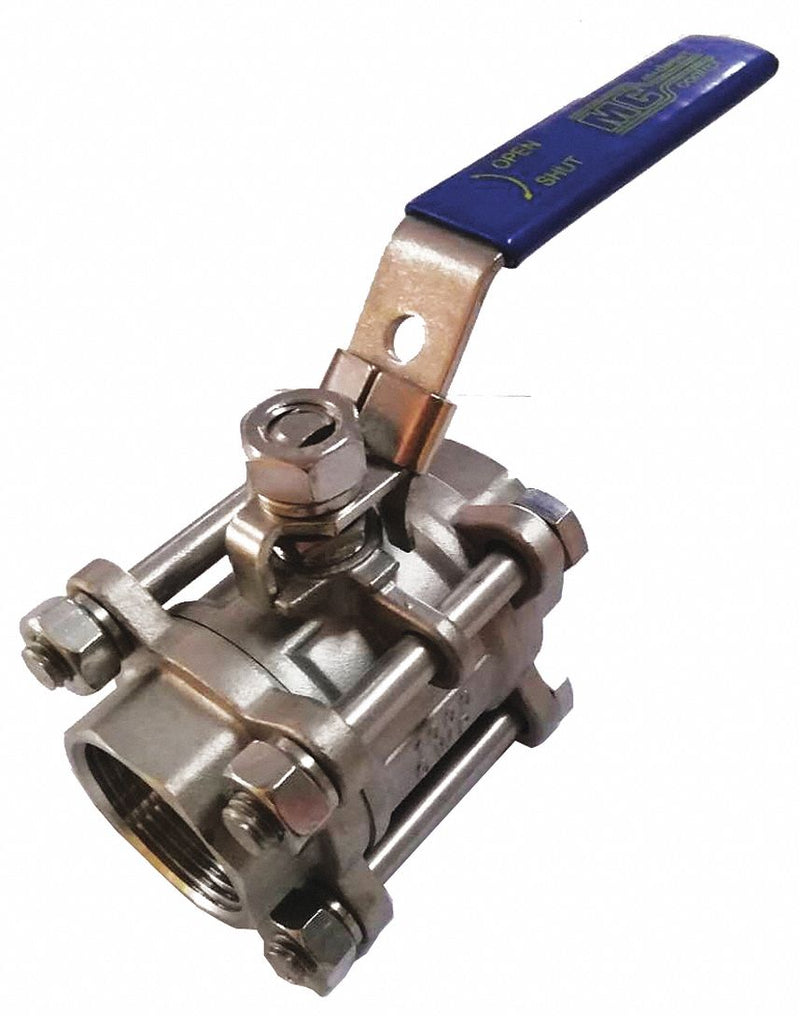

Top Brand Ball Valve, 316 Stainless Steel, Inline, 3-Piece, Pipe Size 1 in, Connection Type FNPT x FNPT - G-S3P1K-100

Top BrandSKU: C1934087
MPN : G-S3P1K-100
Weight : 1.68 lb
filler

Price:
$232.01 $282.94

Availability : Usually Ships in 1-3 Business Days

Handle can be locked in an open or closed position. Blowoutproof stem. Vacuum service to 29" Hg. Suitable for use with hydraulics, vacuum, chemicals, oil, gas, and low-pressure steam in corrosive environments.

ItemBall Valve
Body Material316 Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure3-Piece
Pipe Size1 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure1000 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range0 Degrees to 400 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRPTFE
Stem TypeSelf-Adjusting
Handle TypeLocking Lever
Handle Material304 Stainless Steel
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsASTM A351 CF8M
Overall Length3.35 in
