Handle can be locked in an open or closed position. Blowoutproof stem. Vacuum service to 29" Hg. Suitable for use with hydraulics, vacuum, chemicals, oil, gas, and low-pressure steam in corrosive environments.

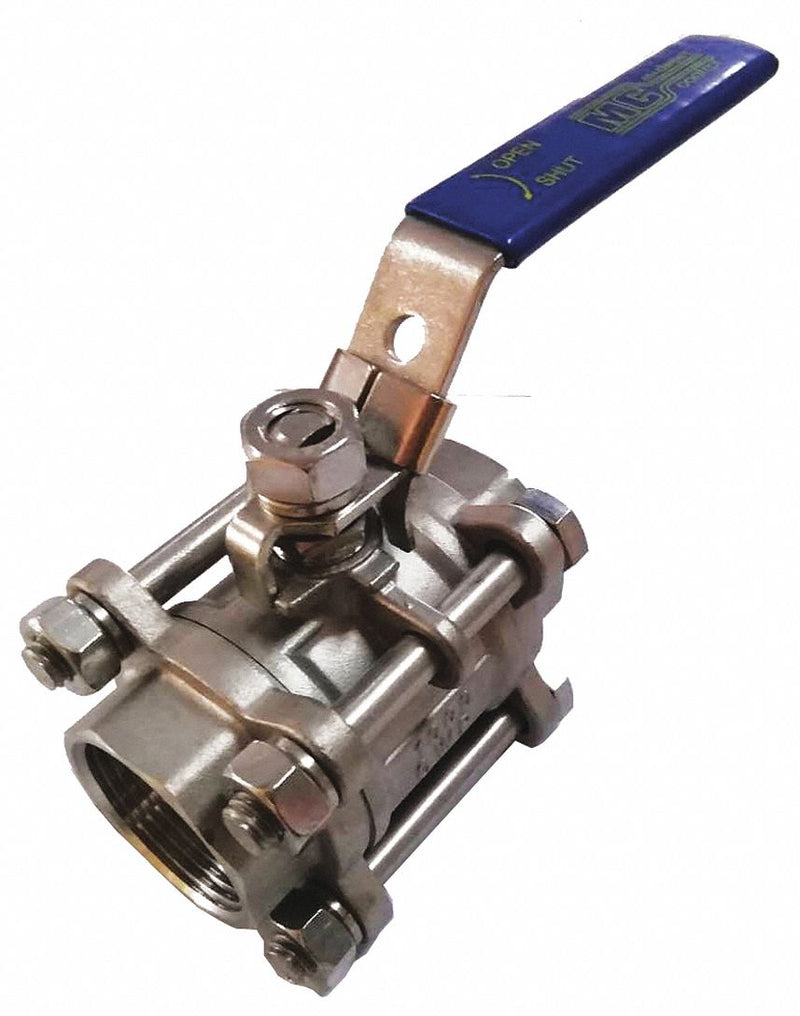

| Item | Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 3-Piece |
| Pipe Size | 2 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 1000 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | RPTFE |
| Stem Type | Self-Adjusting |
| Handle Type | Locking Lever |
| Handle Material | 304 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASTM A351 CF8M |
| Overall Length | 5.28 in |
