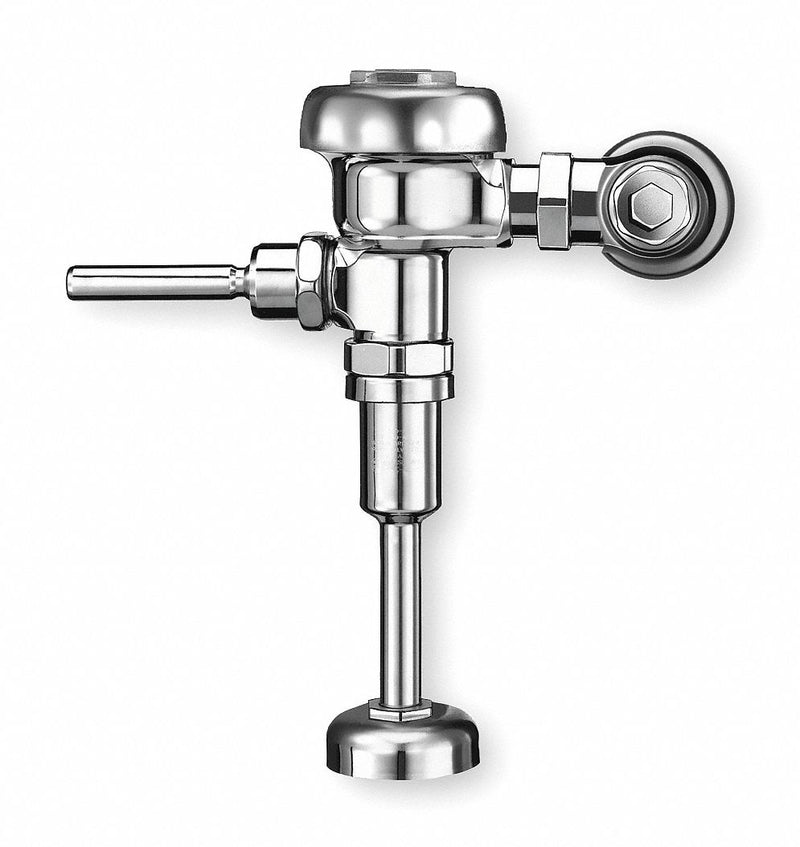

Manual urinal flush valves are sized to fit urinals. These hand-activated valves have a spud coupling for attaching to a urinal spud.,Manual flush valves are hand-activated valves for flushing tankless toilets and urinals. Also known as manual flushometers, these flow-control devices are a cost-effective alternative to automatic valves and have a lever or button that requires no power source to operate.
| Item | Manual Flush Valve |
| Flush Valve Location | Exposed |
| Fixture Connection | Top Spud |
| Brand and Series | Sloan Regal(R) |
| For Use With Category | Urinals |
| Flush Mode | Single Flush |
| Gallons per Flush | 1 |
| Flush Valve Design | Diaphragm |
| Rough-In | 11 1/2 in |
| Spud Coupling | 3/4 in |
| Inlet Size | 3/4 in IPS |
| Pressure Range | 25 to 100 psi |
| Finish | Chrome Plated |
| Includes | ADA Compliant Handle, Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange, Vandal-Resistant Stop Cap with Set Screw |
| Standards | ADA, ANSI, ASSE |
