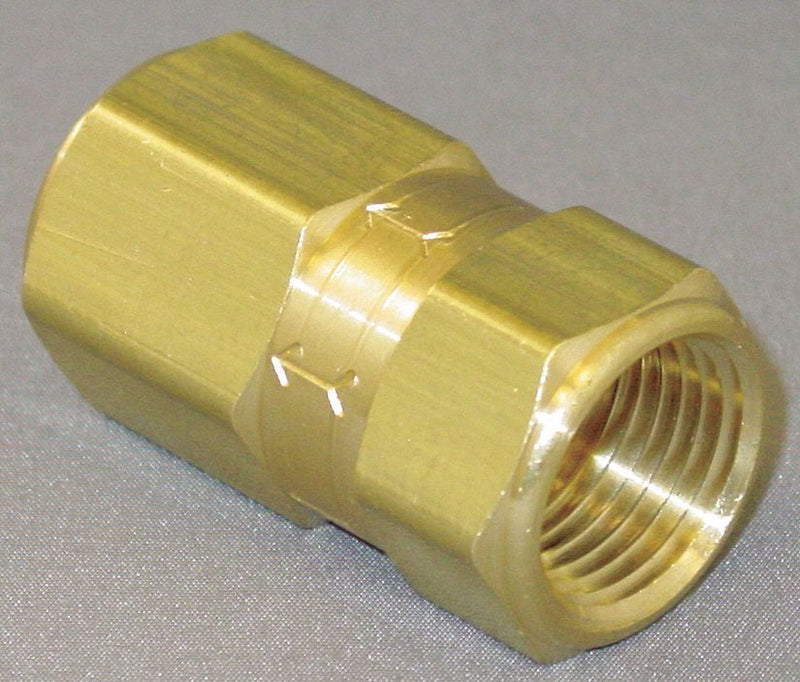

This compact spring check valve can be installed in tight spaces to provide backflow protection for a variety of applications. The first connection listed is the direction of flow. The poppet design provides a positive seal down to approximately 1/2 psi.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Poppet |
| Body Material - Valves | Brass |
| Pipe or Tube Size - Check Valves | 1/2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Viton |
| Max. Temp. - Valves | 180 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 1200 psi |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Brass |
| Spring Material - Check Valves | Stainless Steel |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 1 7/8 in |
| Width | 1 in |
| Overall Height | 1 in |
| Cap to Inlet Center | 7 13/32 in |
| Hex Size | 1 in |
