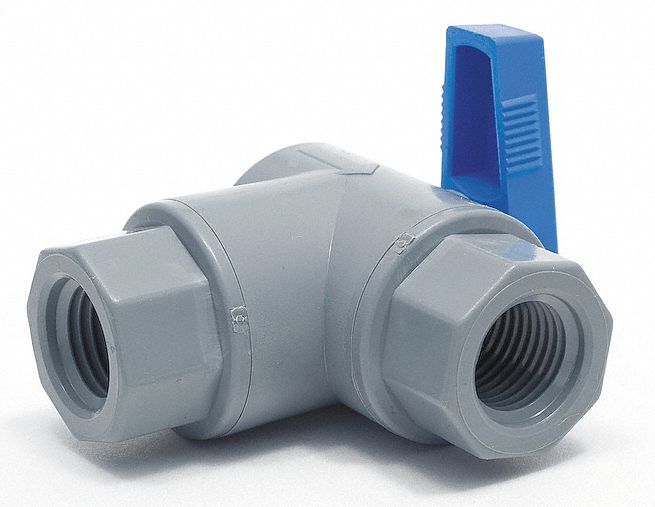

This ball valve features PVC construction. PVC, also known as polyvinyl chloride, is a synthetic plastic polymer with a rigid structure. PVC resists corrosion and most chemicals.
| Item | Ball Valve |
| Body Material | PVC |
| Body Style | Angle |
| General Connection Type | Female NPT |
| Valve Structure | 1-Piece |
| Pipe Size | 1/4 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 125 psi CWP |
| Temp. Range | 20 Degrees to 140 Degrees F |
| Ball Material | PVC |
| Seat Material | Viton |
| Stem Type | Self-Lubricating |
| Handle Type | Long |
| Handle Material | PVC |
| Stem Material | PVC |
| Body Seal Material | FPM |
| Features | Multiple Configurations |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Plastic |
| Standards | NSF STD 51 |
| Overall Length | 4.16 in |
