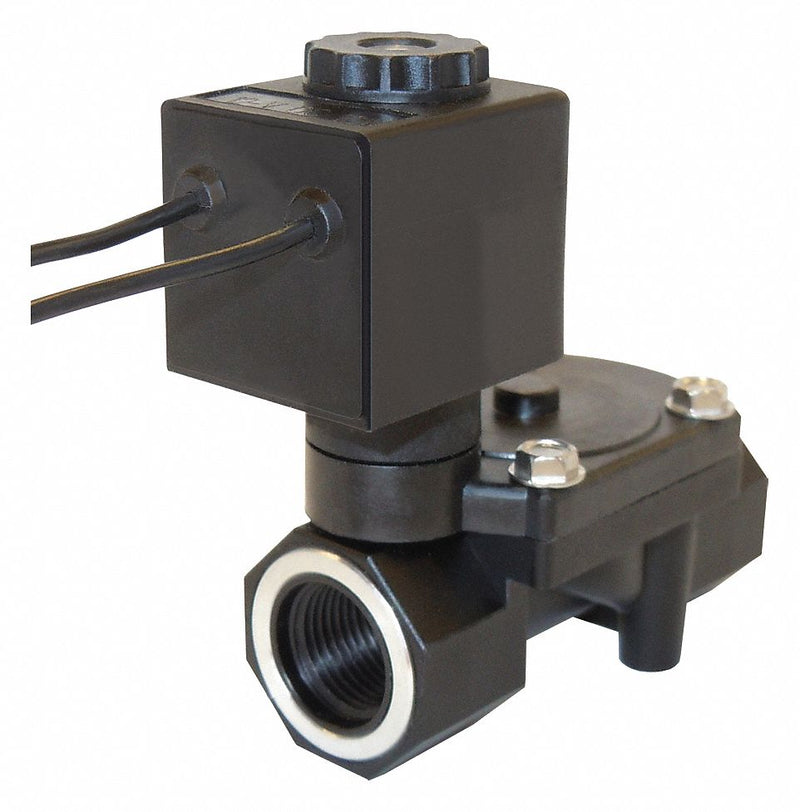

Spartan Glass Filled Nylon Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - 3585-020-9237B
filler
Availability : Usually Ships in 15 Business Days
Features a rugged nylon composite body that resists corrosion and is suitable for a wide variety of media including liquids and gases. The innovative orifice basket design lets you easily change the orifice diameter to meet your flow requirements.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Plastic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Compatible Fluids, Inert Gases, Water |
| Pipe Size - Valves | 1/2 in |
| Min. Operating Pressure Differential | 10 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 150 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 2.45 |
| Body Material - Valves | Glass-Filled Nylon |
| Coil Insulation Class | F |
| Seal Material - Valves | Buna-N |
| Orifice Dia. | 1/2 in |
| Safe Working Water Pressure | 150 psi |
| Hz | 50 to 60 |
| Operation | Pilot Operated |
| Watts | 8.5 W |
| Coil Enclosure | Watertight and Dust Tight |
| Electrical Connections | Wire Leads |
| NEMA Rating | 4, 4X |
| Overall Length | 2 23/32 in |
| Max. Fluid Temp. | 194 Degrees F |
| Overall Width | 1 19/32 in |
| Overall Height | 3 7/32 in |
| Application | General Purpose |
| Standards | CE |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
