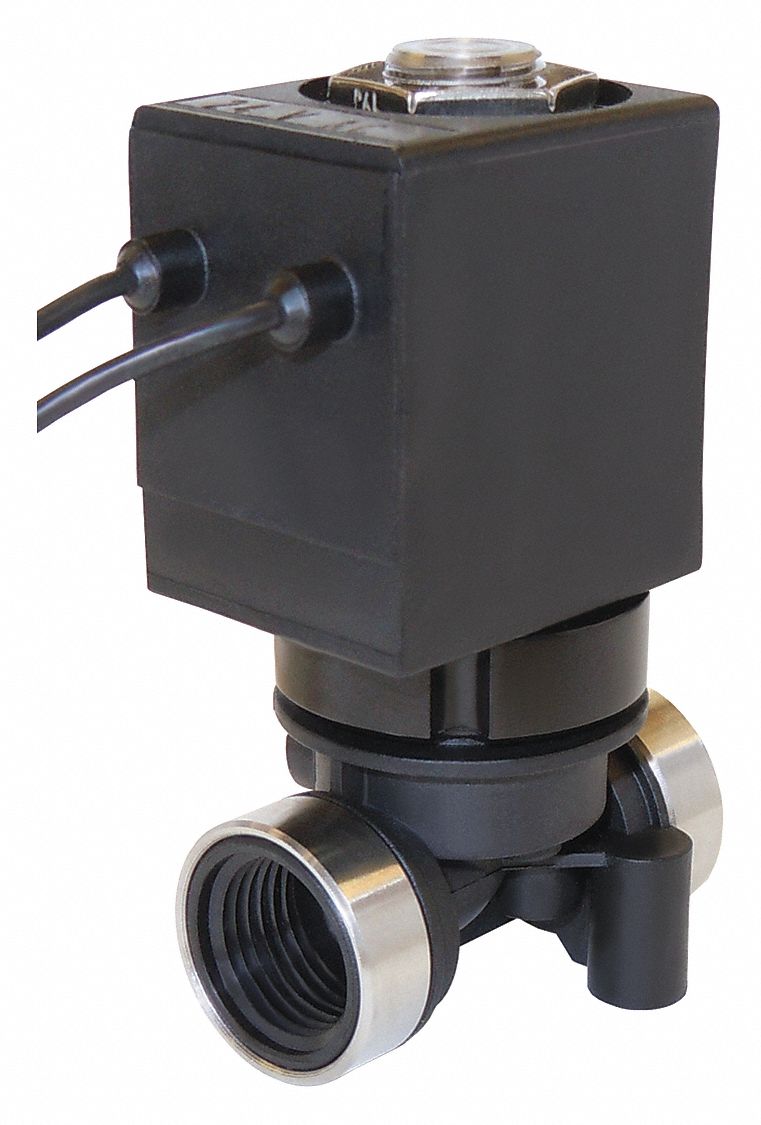

Spartan Glass Filled Nylon Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - 6200-E70-AAB3B

Spartan ScientificSKU: C1948443
MPN : 6200-E70-AAB3B
Weight : 1.0 lb

filler

Price:
$59.97 $96.73

Availability : Usually Ships in 10 Business Days

Features a rugged nylon composite body that resists corrosion and is suitable for a wide variety of media including liquids and gases. The innovative orifice basket design lets you easily change the orifice diameter to meet your flow requirements.

ItemSolenoid Valve
Solenoid Valve Product GroupPlastic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAir, Bases, Inert Gases, Light Oil, Water
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas80 psi
Max. Operating Pressure Differential Light Oil80 psi
Max. Operating Pressure Differential Water80 psi
Environmental Rating - ValvesOutdoor
Voltage24V DC
Coefficient of Volume0.61
Body Material - ValvesGlass-Filled Nylon
Coil Insulation ClassF
Seal Material - ValvesEPDM
Orifice Dia.13/64 in
Safe Working Water Pressure135 psi
Hz50 to 60
OperationDirect Acting
Watts10 W
Coil EnclosureWatertight and Dust Tight
Electrical ConnectionsWire Leads
NEMA Rating4, 4X
Overall Length1 13/16 in
Max. Fluid Temp.140 Degrees F
Overall Width1 15/32 in
Overall Height3 13/64 in
ApplicationGeneral Purpose
StandardsCE
