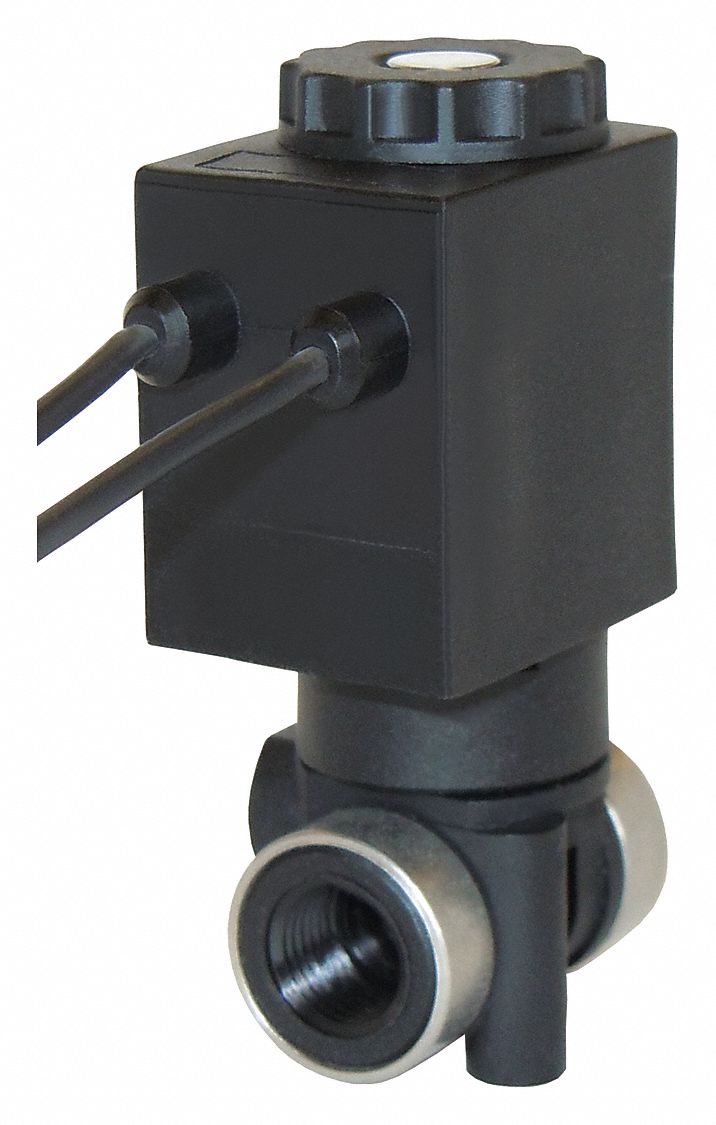

Spartan Glass Filled Nylon Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - 3827-E60-AA86B
filler
Availability : Usually Ships in 10-15 Business Days
Features a rugged nylon composite body that resists corrosion and is suitable for a wide variety of media including liquids and gases. The innovative orifice basket design lets you easily change the orifice diameter to meet your flow requirements.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Plastic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Bases, Inert Gases, Light Oil, Water |
| Pipe Size - Valves | 1/8 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 200 psi |
| Max. Operating Pressure Differential Light Oil | 200 psi |
| Max. Operating Pressure Differential Water | 200 psi |
| Environmental Rating - Valves | Outdoor |
| Voltage | 24V AC |
| Coefficient of Volume | 0.17 |
| Body Material - Valves | Glass-Filled Nylon |
| Coil Insulation Class | F |
| Seal Material - Valves | EPDM |
| Orifice Dia. | 5/64 in |
| Safe Working Water Pressure | 200 psi |
| Hz | 50 to 60 |
| Operation | Direct Acting |
| Watts | 6.5 W |
| Coil Enclosure | Watertight and Dust Tight |
| Electrical Connections | Wire Leads |
| NEMA Rating | 4, 4X |
| Overall Length | 1 3/32 in |
| Max. Fluid Temp. | 194 Degrees F |
| Overall Width | 1 7/64 in |
| Overall Height | 2 7/16 in |
| Application | General Purpose |
| Standards | CE |
