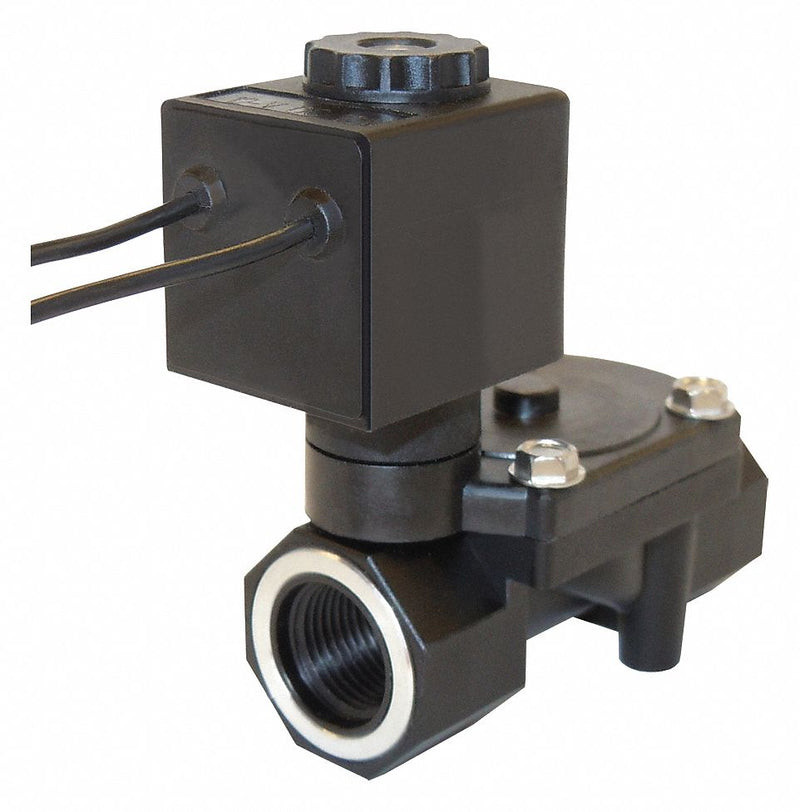

Spartan Glass Filled Nylon Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - 3585-030-9223B

Spartan ScientificSKU: C1948466
MPN : 3585-030-9223B
Weight : 0.5 lb
filler

Price:
$93.84 $114.44

Availability : Usually Ships in 10-15 Business Days

Features a rugged nylon composite body that resists corrosion and is suitable for a wide variety of media including liquids and gases. The innovative orifice basket design lets you easily change the orifice diameter to meet your flow requirements.

ItemSolenoid Valve
Solenoid Valve Product GroupPlastic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesCompatible Fluids, Inert Gases, Water
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential10 psi
Max. Operating Pressure Differential Air/Inert Gas150 psi
Max. Operating Pressure Differential Light Oil150 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesOutdoor
Voltage24V DC
Coefficient of Volume1.95
Body Material - ValvesGlass-Filled Nylon
Coil Insulation ClassF
Seal Material - ValvesEPDM
Orifice Dia.1/2 in
Safe Working Water Pressure150 psi
Hz50 to 60
OperationPilot Operated
Watts6.5 W
Coil EnclosureWatertight and Dust Tight
Electrical ConnectionsWire Leads
NEMA Rating4, 4X
Overall Length2 23/32 in
Max. Fluid Temp.194 Degrees F
Overall Width1 19/32 in
Overall Height3 7/32 in
ApplicationGeneral Purpose
StandardsCE
