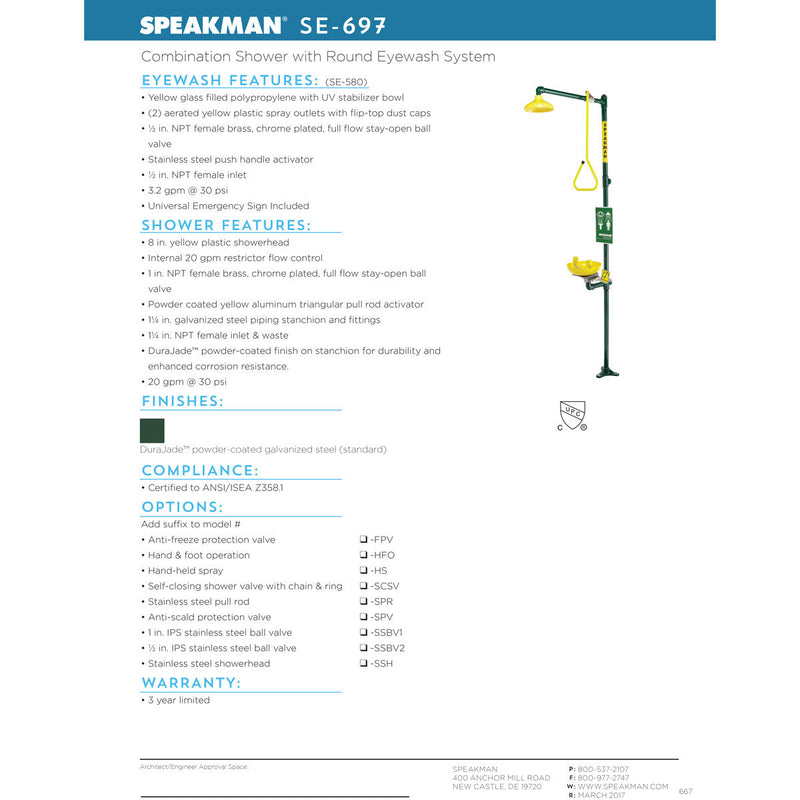

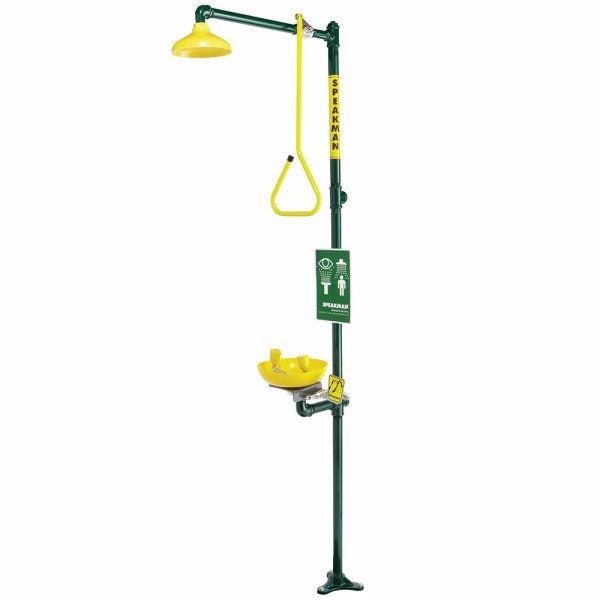

Speakman traditional series combination emergency stations provide the highest level of performance in times of need. All traditional series combination stations feature a high performance emergency shower head and a 1-1/4" DuraJade powder coated stanchion. The Speakman Traditional Series SE-697 Combination Emergency Station with Plastic Bowl Eyewash features a stay open ball valve, allowing hands free operation once the shower has been activated and an SE-580 eyewash. The high visibility yellow pull rod, makes finding the SE-697 easy in an emergency. The SE-697 meets ANSI/ISEA Z385.1 compliance.
EYEWASH FEATURES: (SE-580)
• Yellow glass filled polypropylene with UV stabilizer bowl
• (2) aerated yellow plastic spray outlets with flip-top dust caps
• ½ in. NPT female brass, chrome plated, full flow stay-open ball valve
• Stainless steel push handle activator
• ½ in. NPT female inlet
• 3.2 gpm @ 30 psi
• Universal Emergency Sign Included
SHOWER FEATURES:
• 8 in. yellow plastic showerhead
• Internal 20 gpm restrictor flow control
• 1 in. NPT female brass, chrome plated, full flow stay-open ball valve
• Powder coated yellow aluminum triangular pull rod activator
• 1¼ in. galvanized steel piping stanchion and fittings
• 1¼ in. NPT female inlet & waste
• DuraJade™ powder-coated finish on stanchion for durability and enhanced corrosion resistance.
• 20 gpm @ 30 psi
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eyewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Plastic |
| Eye/Face Wash Valve | 1/2" NPT Female Brass, Chrome Plated, Full Flow Stay-Open Ball Valve |
| Shower Stanchion | 1-1/4" IPS Galvanized Steel Piping, Brass Fittings |
| Mounting Location | Floor Mounted |
| Eye/Face Wash Performance | 3.8 gpm @ 30 psi |
| Eyewash Flow Pressure | 30 psi |
| Shower Flow Control | Internal 20 gpm Regulator |
| Shower Inlet & Waste | 1-1/4" NPT Female |
| Bowl Color Family | Yellow |
| Showerhead | 8" Cycolac® Yellow Plastic |
| Brand | Speakman |
| Type | Traditional Series Combination Emergency Station |
| Shower Flow Rate | 20 GPM psi |
| Color | Silver |
| Eyewash Flow Rate | 3.18 GPM gal/min |
| Shower Head | ABS Plastic |
| Eye/Face Wash Spray Heads | (2) Aerated Yellow Plastic Spray Outlets, Flip-Top Dust Caps |
| Eye/Face Wash Inlet | 1-1/4" NPT Female |
| Shower Valve | 1" NPT Female Brass, Chrome Plated, Full Flow Stay Open Ball Valve |
| Eye/Face Wash Activator | Push Handle |
| Includes | Universal Emergency Sign |
| Shower Performance | 20 gpm @ 20 psi |
| Shower Material | DuraJade™ Powder Coated Finish |
| Bowl Material | ABS Plastic |
