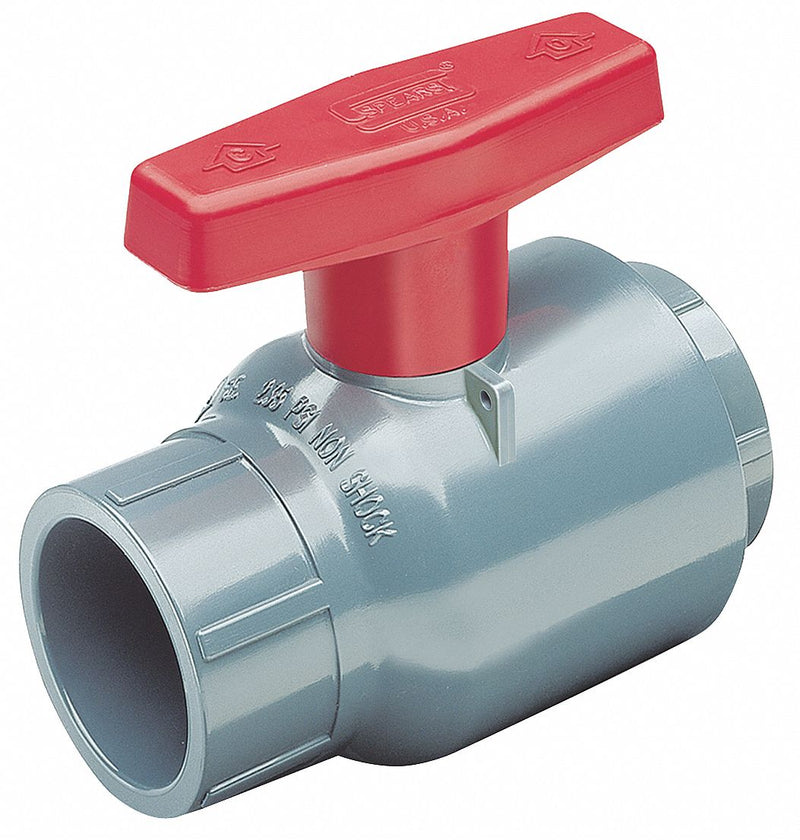

Chemical/corrosion resistant and fully sealed SPEARS compact ball valve features a self-adjusting PTFE floating seat design, and a high-impact polypropylene handle. Model is suitable for a variety of chemical process and industrial applications including vacuum service. Designed for horizontal installation, but can be installed in a vertical up-flow only orientation.
| Item | Compact Ball Valve |
| Body Material | CPVC |
| Body Style | Inline |
| General Connection Type | Socket |
| Valve Structure | 1-Piece |
| Pipe Size | 2 in |
| Connection Type | Socket x Socket |
| Port | Standard |
| Max. Pressure | 235 psi CWP |
| Temp. Range | 32 Degrees to 190 Degrees F |
| Ball Material | PVC |
| Seat Material | FKM |
| Stem Type | Safe-T-Shear(R) |
| Handle Type | Tee |
| Handle Material | Polypropylene |
| Stem Material | PVC |
| Body Seal Material | FKM |
| Features | 3-Slot |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Plastic |
| Standards | ASTM F 1970 |
