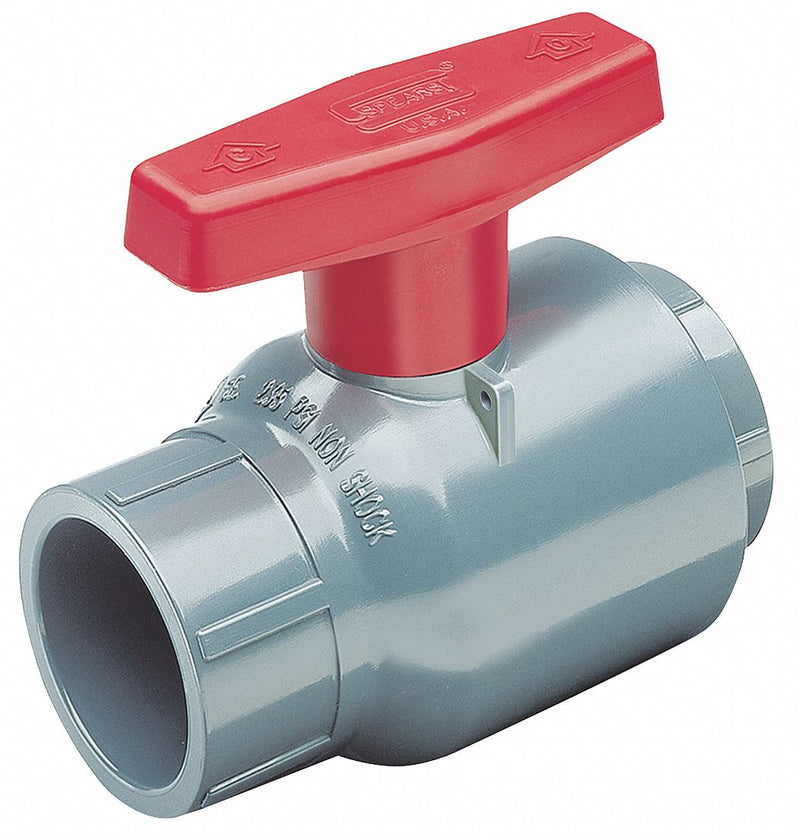

Spears Compact Ball Valve, CPVC, Inline, 1-Piece, Pipe Size 3/4 in, Connection Type FNPT x FNPT - 2131-007C

SpearsSKU: C1947190
MPN : 2131-007C
Weight : 0.65 lb
filler

Price:
$334.96 $408.49

Availability : Usually Ships in 1-3 Business Days

Chemical and corrosion resistant, fully sealed, and features a self-adjusting PTFE floating seat design. Suitable for a variety of chemical process and industrial applications including vacuum service.

ItemCompact Ball Valve
Body MaterialCPVC
Body StyleInline
General Connection TypeFemale NPT
Valve Structure1-Piece
Pipe Size3/4 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure235 psi CWP
Temp. Range32 Degrees to 190 Degrees F
Ball MaterialPVC
Seat MaterialFKM
Stem TypeSafe-T-Shear(R)
Handle TypeTee
Handle MaterialPolypropylene
Stem MaterialPVC
Body Seal MaterialFKM
Features3-Slot
Ball Valve Product GroupManual
Valve Basic Body MaterialPlastic
StandardsASTM F 1970
Overall Length4.0625 in
