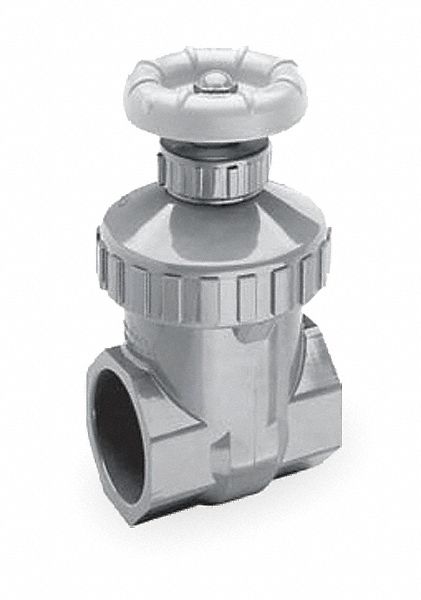

Spears Gate Valve, PVC, Socket Connection Type, Pipe Size - Valves 1/2 in - 2032-005

SpearsSKU: C1946780
MPN : 2032-005
Weight : 1.0 lb


$65.91 $106.31

Availability : Usually Ships in 10-12 Business Days

Gate Valve; Body Material - Valves: PVC; Connection Type: Socket; Pipe Size - Valves: 1/2 in; Max. Water Pressure - CWP: 200 psi; Valve Max. Fluid Temp.: 140 Degrees F; Valve Stem Type: Non-Rising; Top of Handle to Inlet Center: 4 1/8 in; Inlet to Outlet Length: 2 13/16 in; Stem Material: PVC; Bonnet Style: Screwed; Wedge Material: Polypropylene; Seal Material: Viton; Handle Material: Polypropylene; Handle Type: Hand Wheel

ItemGate Valve
Body Material - ValvesPVC
Connection TypeSocket
Pipe Size - Valves1/2 in
Max. Water Pressure - CWP200 psi
Valve Max. Fluid Temp.140 Degrees F
Valve Stem TypeNon-Rising
Top of Handle to Inlet Center4 1/8 in
Inlet to Outlet Length2 13/16 in
Stem MaterialPVC
Bonnet StyleScrewed
Wedge MaterialPolypropylene
Seal MaterialViton
Handle MaterialPolypropylene
Handle TypeHand Wheel
