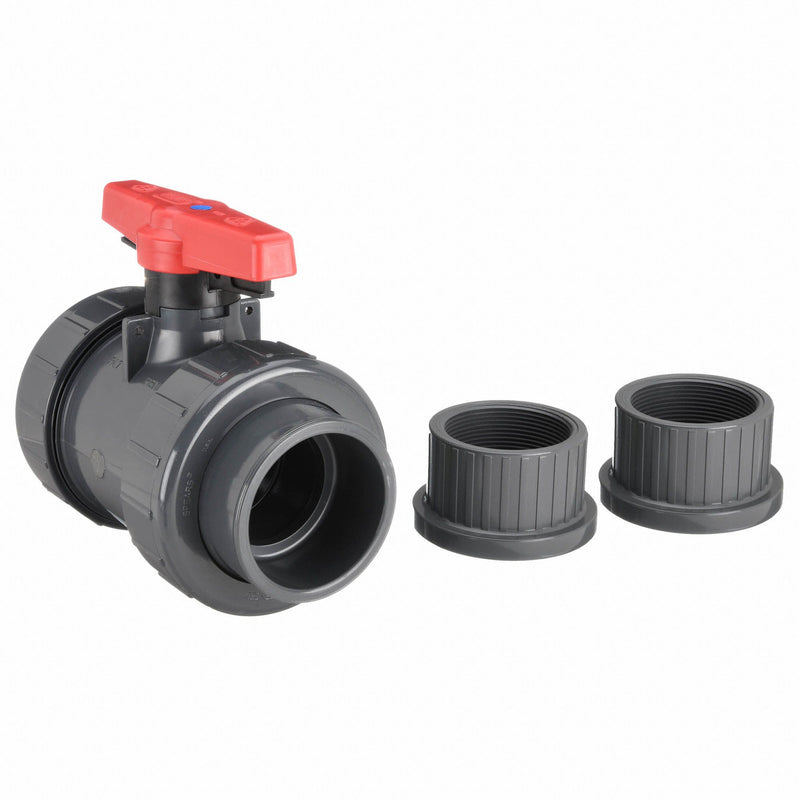

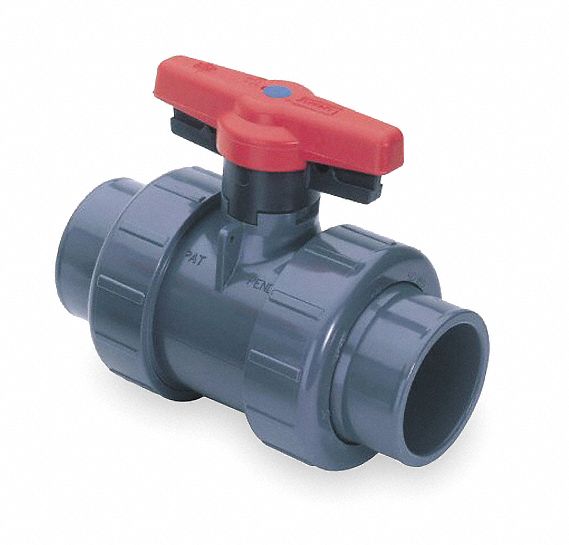

Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 4 in, Connection Type Socket x Socket - 1822-040
Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 4 in, Connection Type Socket x Socket - 1822-040
Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 4 in, Connection Type Socket x Socket - 1822-040
Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 4 in, Connection Type Socket x Socket - 1822-040

Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 4 in, Connection Type Socket x Socket - 1822-040

SpearsSKU: C1934244
MPN : 1822-040
Weight : 13.7 lb

filler
Price:
$1,360.68 $2,194.65

Availability : Usually Ships in 12 Business Days

Designed for chemical-processing applications, this SPEARS ball valve features chemical- and corrosion-resistant construction and has a built-in handle lockout to help prevent tampering. Compact unit has a Safe-T-Shear stem with double O-ring stem seals, plus model is fully serviceable with replaceable valve components.

ItemBall Valve
Body MaterialPVC
Body StyleInline True Union
General Connection TypeSocket
Valve Structure2-Piece
Pipe Size4 in
Connection TypeSocket x Socket
PortFull
Max. Pressure235 psi @ 73 Degrees F
Temp. Range73 Degrees to 140 Degrees F
Ball MaterialPVC
Seat MaterialPTFE
Stem TypeSafe-T-Shear(R)
Handle TypeLocking Tee
Handle MaterialPolypropylene
Stem MaterialPVC
Body Seal MaterialEPDM
FeaturesTrue Union Design
Ball Valve Product GroupManual
Valve Basic Body MaterialPlastic
StandardsASTM F 1970, NSF Approved
Overall Length11.88 in
