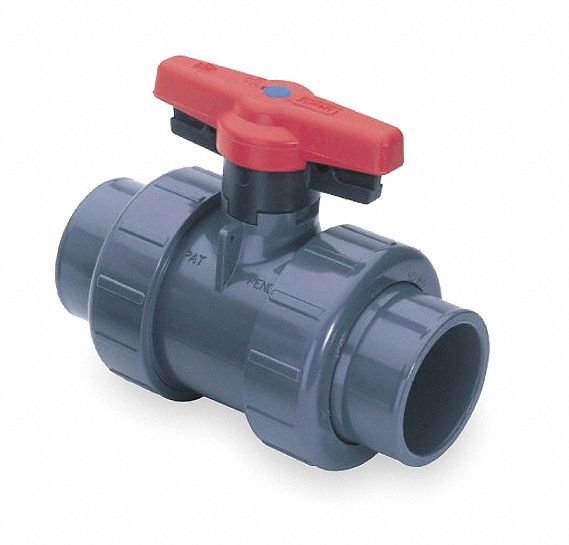

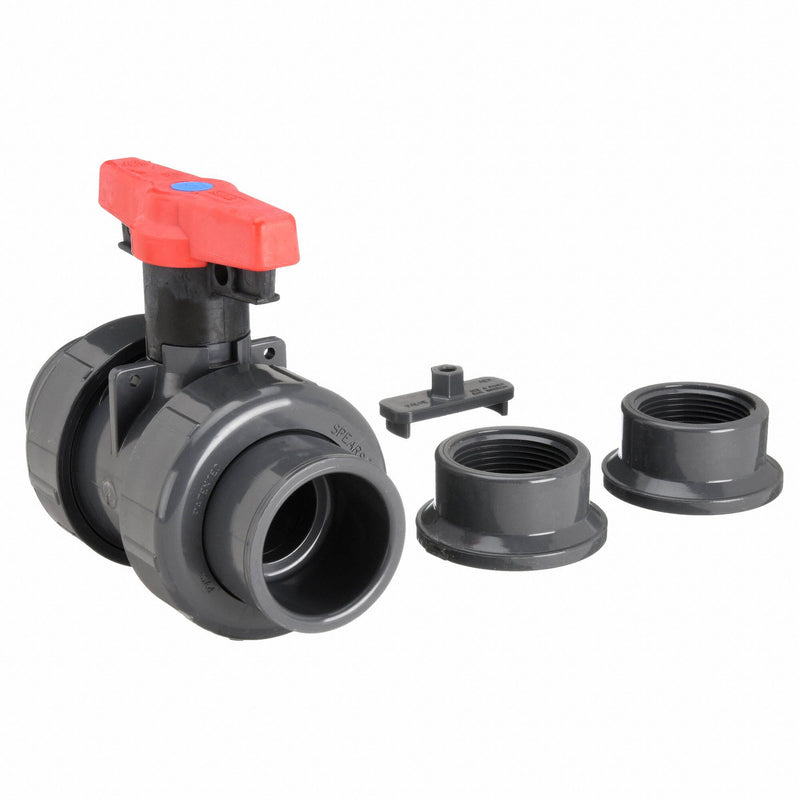

Designed for chemical-processing applications, this SPEARS ball valve features chemical- and corrosion-resistant construction and has a built-in handle lockout to help prevent tampering. Compact unit has a Safe-T-Shear stem with double O-ring stem seals, plus model is fully serviceable with replaceable valve components.
| Item | Ball Valve |
| Body Material | PVC |
| Body Style | Inline True Union |
| General Connection Type | Socket |
| Valve Structure | 2-Piece |
| Pipe Size | 1/2 in |
| Connection Type | Socket/FNPT x Socket/FNPT |
| Port | Full |
| Max. Pressure | 235 psi @ 73 Degrees F |
| Temp. Range | 73 Degrees to 140 Degrees F |
| Ball Material | PVC |
| Seat Material | PTFE |
| Stem Type | Safe-T-Shear(R) |
| Handle Type | Locking Tee |
| Handle Material | Polypropylene |
| Stem Material | PVC |
| Body Seal Material | EPDM |
| Features | True Union Design |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Plastic |
| Standards | ASTM F 1970, NSF Approved |
| Overall Length | 4.2 in |
