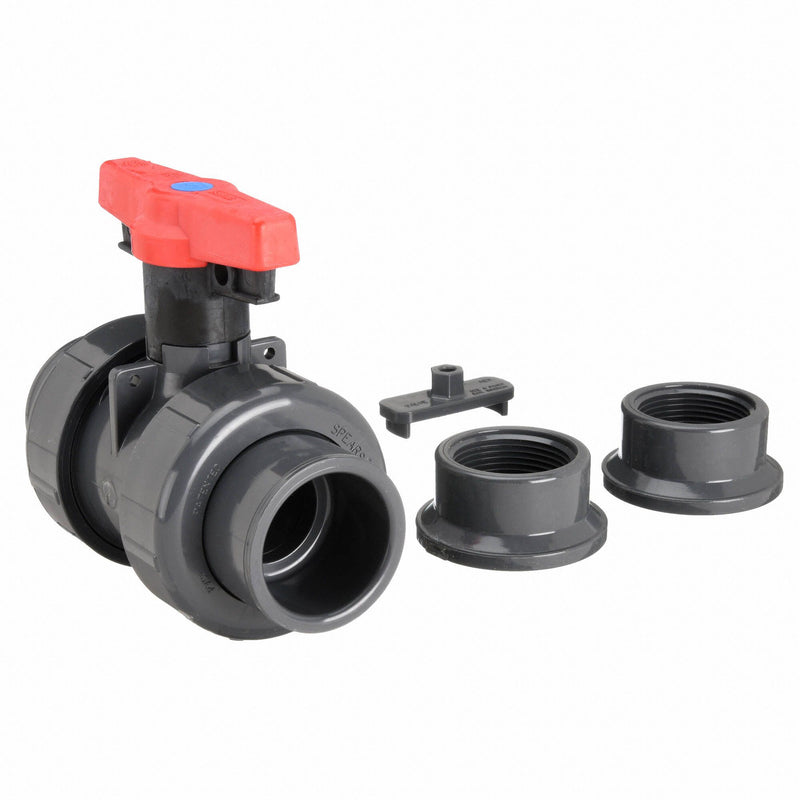

Spears Ball Valve, PVC, Inline True Union, 2-Piece, Pipe Size 1 1/2 in - 1829-015

SpearsSKU: C1934241
MPN : 1829-015
Weight : 2.1 lb


$272.25 $439.12

Availability : Usually Ships in 12 Business Days

Designed for chemical-processing applications, this SPEARS ball valve features chemical- and corrosion-resistant construction and has a built-in handle lockout to help prevent tampering. Compact unit has a Safe-T-Shear stem with double O-ring stem seals, plus model is fully serviceable with replaceable valve components.

ItemBall Valve
Body MaterialPVC
Body StyleInline True Union
General Connection TypeSocket
Valve Structure2-Piece
Pipe Size1 1/2 in
Connection TypeSocket/FNPT x Socket/FNPT
Max. Pressure235 psi @ 73 Degrees F
Temp. Range73 Degrees to 140 Degrees F
Ball MaterialPVC
Seat MaterialPTFE
Stem TypeSafe-T-Shear(R)
Handle TypeLocking Tee
Handle MaterialPolypropylene
Stem MaterialPVC
Body Seal MaterialEPDM
FeaturesTrue Union Design
Ball Valve Product GroupManual
Valve Basic Body MaterialPlastic
StandardsASTM F 1970, NSF Approved
Overall Length6.25 in
