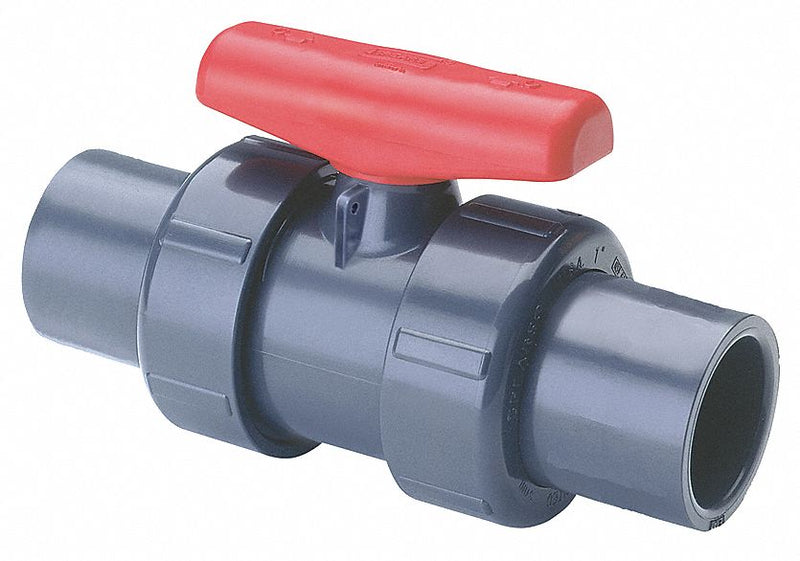

Spears Ball Valve, PVC, Inline, 3-Piece, Pipe Size 2 in, Connection Type Socket x Socket - 3622R-020

SpearsSKU: C1947219
MPN : 3622R-020
Weight : 3.4 lb


$242.32 $390.84

Availability : Usually Ships in 10-15 Business Days

Chemical/corrosion resistant and fully sealed SPEARS ball valve features a self-adjusting PTFE floating seat design, and a high-impact polypropylene handle. Model is suitable for a variety of chemical process and industrial applications including vacuum service. Designed for horizontal installation, but can be installed in a vertical up-flow only orientation.

ItemBall Valve
Body MaterialPVC
Body StyleInline
General Connection TypeSocket
Valve Structure3-Piece
Pipe Size2 in
Connection TypeSocket x Socket
Max. Pressure235 psi CWP
Temp. Range40 Degrees to 140 Degrees F
Ball MaterialPVC
Seat MaterialEPDM
Stem TypeSafe-T-Shear(R)
Handle TypeTee
Handle MaterialPolypropylene
Stem MaterialPVC
Body Seal MaterialEPDM
Ball Valve Product GroupManual
Valve Basic Body MaterialPlastic
StandardsASTM F 1970
