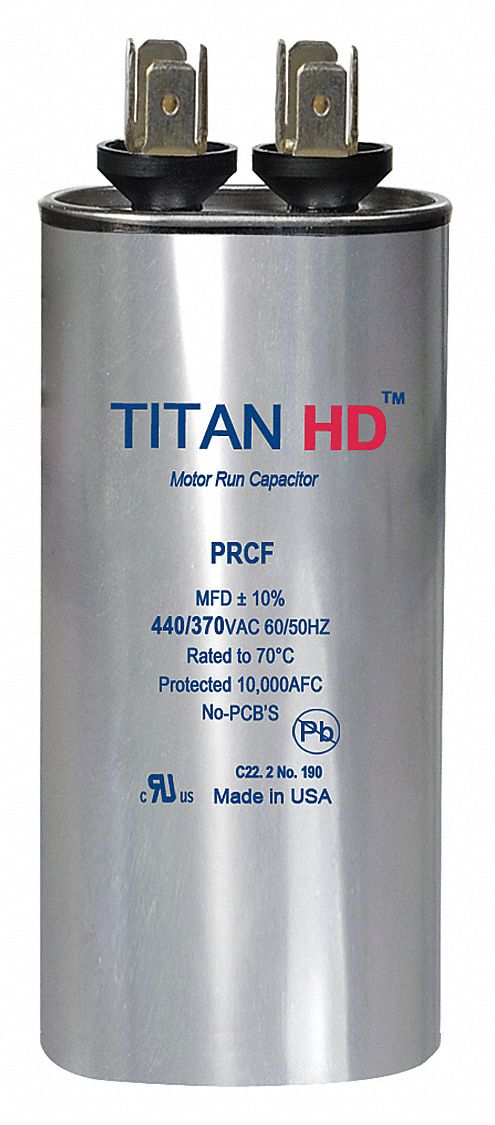

Titan Round Motor Run Capacitor,70 Microfarad Rating,440VAC Voltage - PRCF70A

Titan Motor CapacitorsSKU: C1548138
MPN : PRCF70A
Weight : 0.6 lb
filler

Price:
$58.44 $71.27

Availability : Usually Ships in 1-3 Business Days

Motor Capacitor Type: Motor Run Capacitor; Microfarad Rating: 70; Capacitor Voltage: 440V AC; Hz: 60/50; Capacitor Shape: Round; Diameter: 2 1/2 in; Case Height: 2 29/32 in; Overall Height: 3 13/32 in; Overall Width: 2 in; EIA UL Base: A; Terminal Type: 1/4 in Male Quick-Connect; Temp. Range: -40 Degrees to 70 Degrees C; Case Material: Aluminum; Cover Material: Steel; Standards: E136401, IEC 60252, RoHS Compliant

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating70
Capacitor Voltage440V AC
Hz60/50
Capacitor ShapeRound
Diameter2 1/2 in
Case Height2 29/32 in
Overall Height3 13/32 in
Overall Width2 in
EIA UL BaseA
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsE136401, IEC 60252, RoHS Compliant
