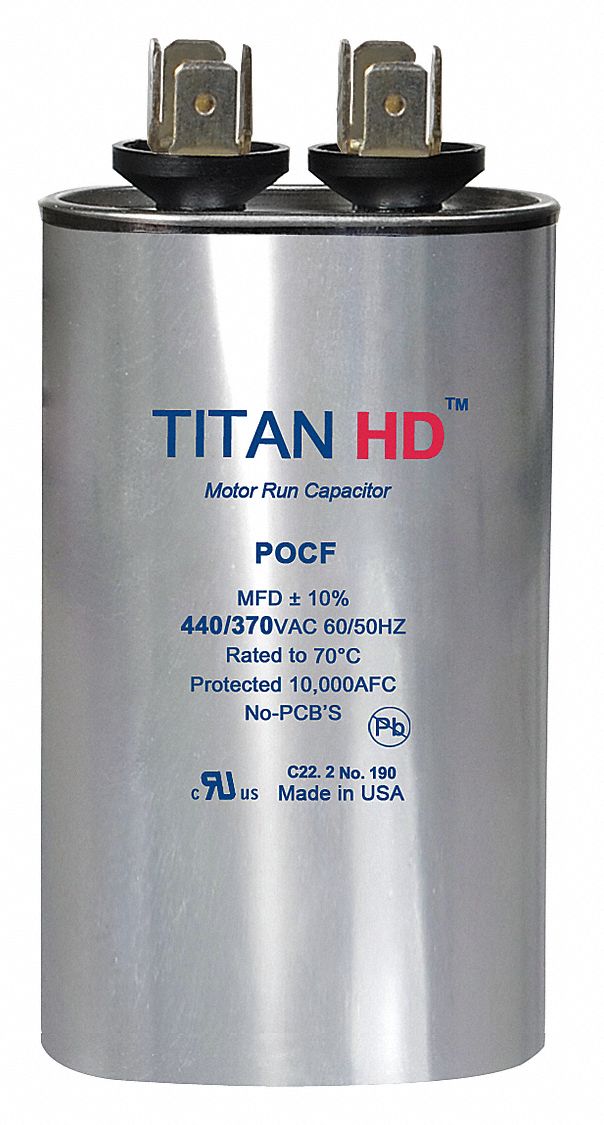

Titan Oval Motor Run Capacitor,7.5 Microfarad Rating,440VAC Voltage - POCF7.5A

Titan Motor CapacitorsSKU: C1548116
MPN : POCF7.5A
Weight : 0.2 lb
filler

Price:
$12.81 $15.62

Availability : Usually Ships in 1-3 Business Days

Motor Capacitor Type: Motor Run Capacitor; Microfarad Rating: 7.5; Capacitor Voltage: 440V AC; Hz: 60/50; Capacitor Shape: Oval; Case Height: 2 3/16 in; Overall Height: 2 11/16 in; Overall Width: 2 in; Overall Depth: 1 1/4 in; EIA UL Base: A; Terminal Type: 1/4 in Male Quick-Connect; Temp. Range: -40 Degrees to 70 Degrees C; Case Material: Aluminum; Cover Material: Steel; Standards: E136401, IEC 60252, RoHS Compliant

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating7.5
Capacitor Voltage440V AC
Hz60/50
Capacitor ShapeOval
Case Height2 3/16 in
Overall Height2 11/16 in
Overall Width2 in
Overall Depth1 1/4 in
EIA UL BaseA
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsE136401, IEC 60252, RoHS Compliant
