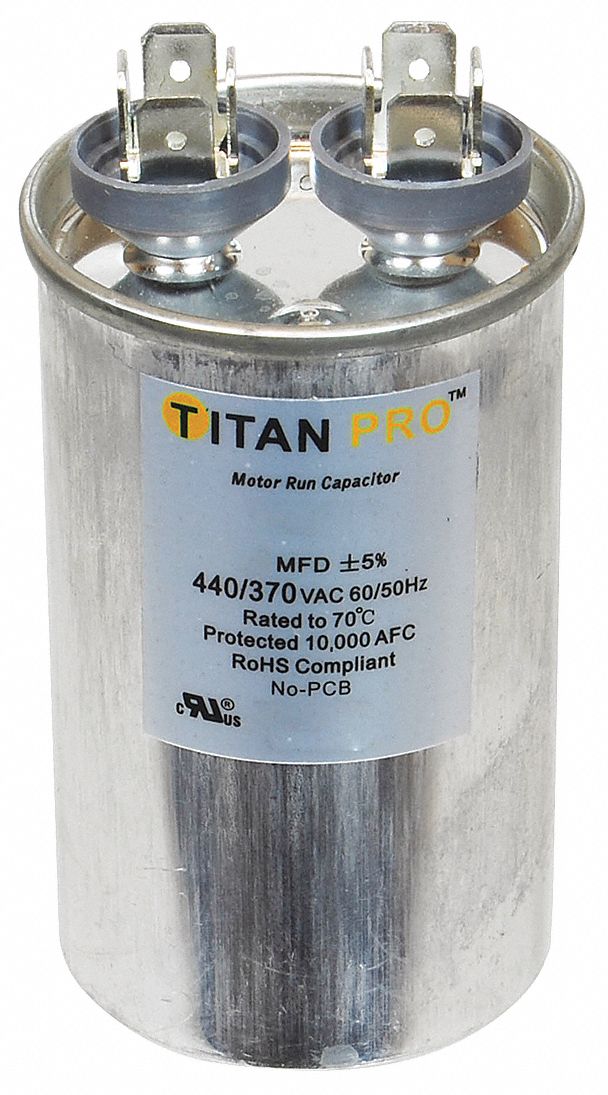

Titan Pro Round Motor Run Capacitor,10 Microfarad Rating,370-440VAC Voltage - TRCF10

Titan Motor CapacitorsSKU: C1554040
MPN : TRCF10
Weight : 0.25 lb
filler

Price:
$6.62 $8.07

Availability : Usually Ships in 1-3 Business Days

Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating10
Capacitor Voltage370-440V AC
Hz60/50
Capacitor ShapeRound
Diameter1 3/4 in
Case Height2 3/8 in
Overall Height2 7/8 in
Overall Width1 3/4 in
Overall Depth1 3/4 in
EIA UL BaseP
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsUL Recognized (E185318)
