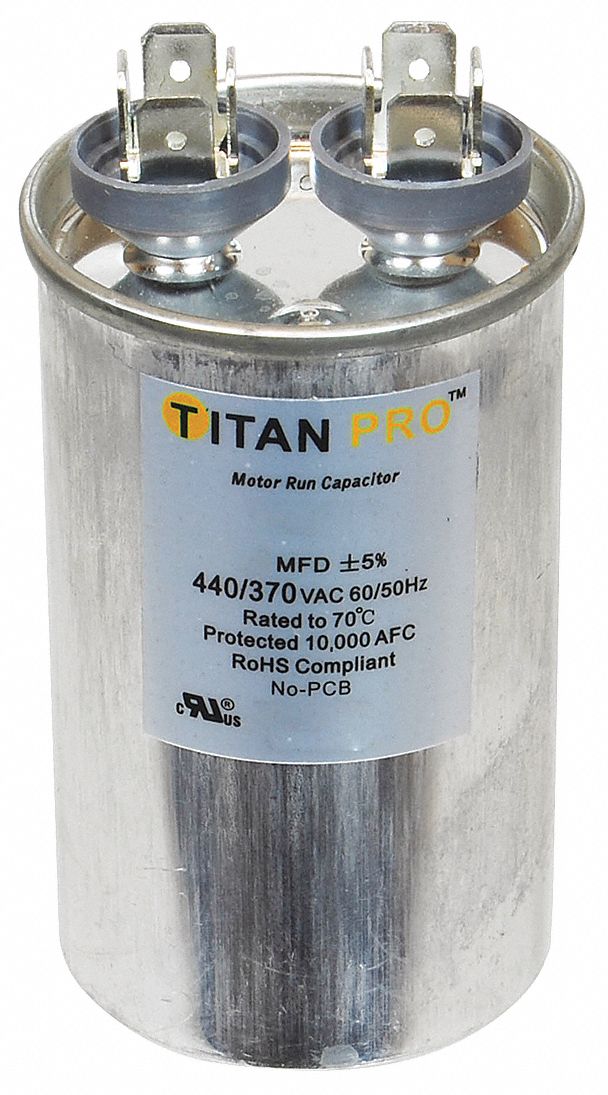

Titan Pro Round Motor Run Capacitor,15 Microfarad Rating,370-440VAC Voltage - TRCF15
filler
Availability : Usually Ships in 1-3 Business Days
Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.
| Motor Capacitor Type | Motor Run Capacitor |
| Microfarad Rating | 15 |
| Capacitor Voltage | 370-440V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 1 3/4 in |
| Case Height | 2 9/16 in |
| Overall Height | 3 1/16 in |
| Overall Width | 1 3/4 in |
| Overall Depth | 1 3/4 in |
| EIA UL Base | P |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 70 Degrees C |
| Case Material | Aluminum |
| Cover Material | Steel |
| Standards | UL Recognized (E185318) |
