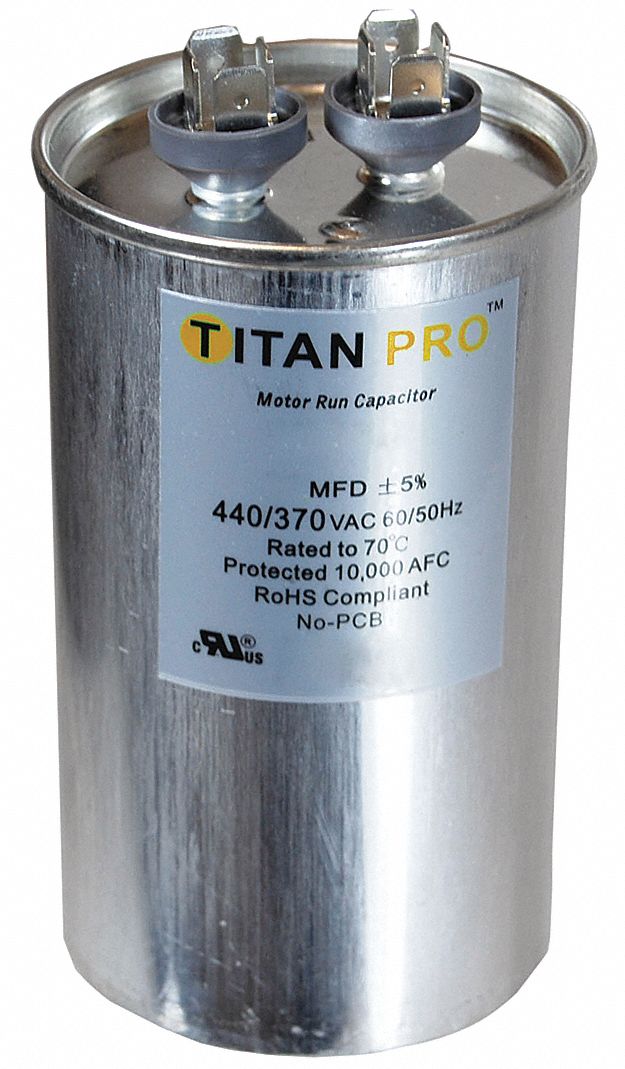

Titan Pro Round Motor Run Capacitor,35 Microfarad Rating,370-440VAC Voltage - TRCF35

Titan Motor CapacitorsSKU: C1554047
MPN : TRCF35
Weight : 1.0 lb

filler

Price:
$12.11 $19.54

Availability : Usually Ships in 7 Business Days

Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating35
Capacitor Voltage370-440V AC
Hz60/50
Capacitor ShapeRound
Diameter2 in
Case Height3 3/8 in
Overall Height3 7/8 in
Overall Width2 in
Overall Depth2 in
EIA UL BaseS
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsUL Recognized (E185318)
