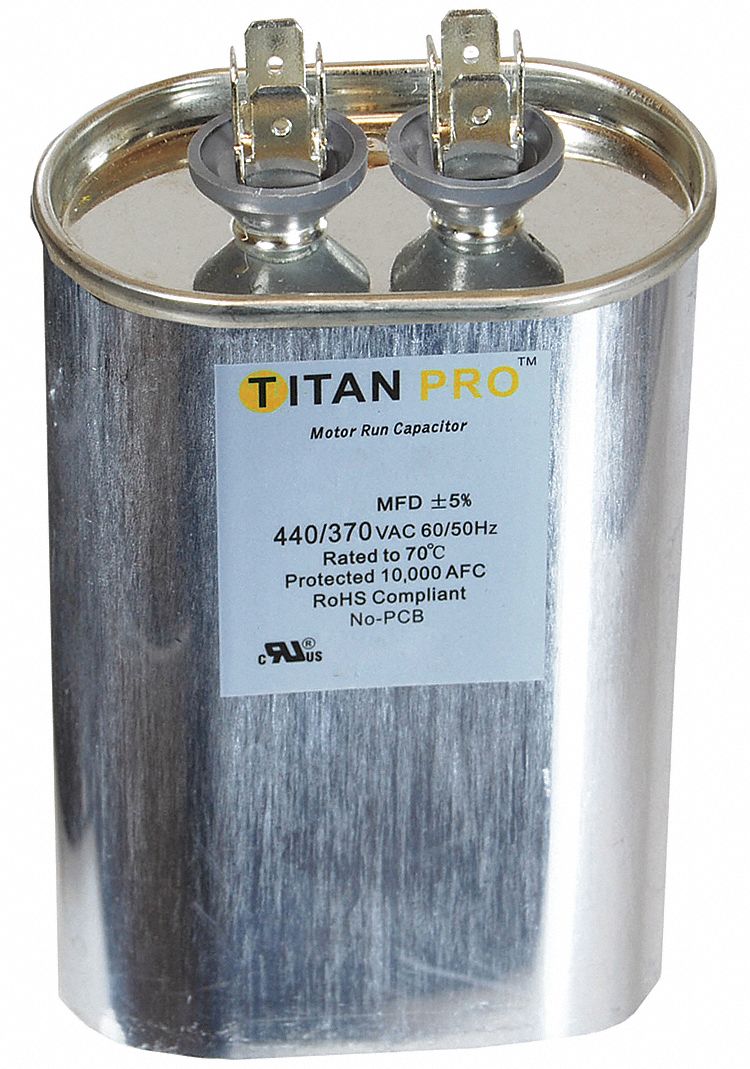

Titan Pro Oval Motor Run Capacitor,55 Microfarad Rating,370-440VAC Voltage - TOCF55
filler
Availability : Usually Ships in 7 Business Days
Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.
| Motor Capacitor Type | Motor Run Capacitor |
| Microfarad Rating | 55 |
| Capacitor Voltage | 370-440V AC |
| Hz | 60/50 |
| Capacitor Shape | Oval |
| Case Height | 3 1/8 in |
| Overall Height | 5 1/2 in |
| Overall Width | 2 3/4 in |
| Overall Depth | 1 3/4 in |
| EIA UL Base | C |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 70 Degrees C |
| Case Material | Aluminum |
| Cover Material | Steel |
| Standards | UL Recognized (E185318) |
