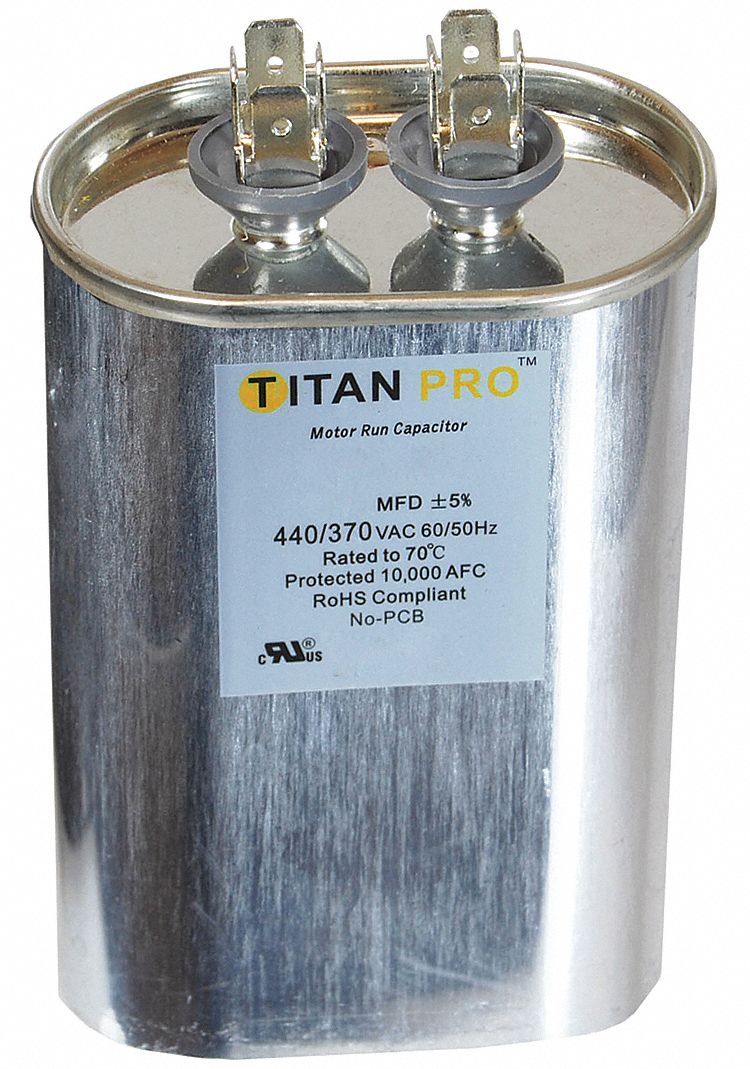

Titan Pro Oval Motor Run Capacitor,60 Microfarad Rating,370-440VAC Voltage - TOCF60

Titan Motor CapacitorsSKU: C1554019
MPN : TOCF60
Weight : 1.0 lb

filler

Price:
$21.13 $25.77

Availability : Usually Ships in 1-3 Business Days

Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating60
Capacitor Voltage370-440V AC
Hz60/50
Capacitor ShapeOval
Case Height3 5/16 in
Overall Height4 5/16 in
Overall Width3 1/2 in
Overall Depth1 7/8 in
EIA UL BaseD
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsUL Recognized (E185318)
