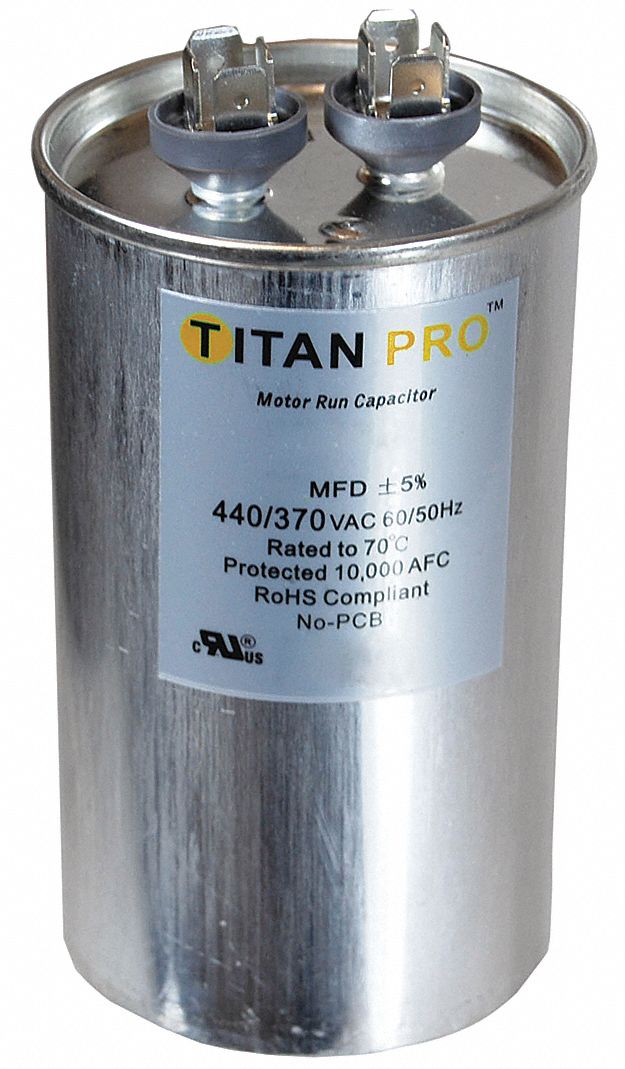

Titan Pro Round Motor Run Capacitor,80 Microfarad Rating,370-440VAC Voltage - TRCF80

Titan Motor CapacitorsSKU: C1554056
MPN : TRCF80
Weight : 0.85 lb
filler

Price:
$31.42 $38.32

Availability : Usually Ships in 1-3 Business Days

Run Capacitors,Temp. range: -40 to 70C,The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals.,UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating80
Capacitor Voltage370-440V AC
Hz60/50
Capacitor ShapeRound
Diameter2 1/2 in
Case Height4 5/16 in
Overall Height4 13/16 in
Overall Width2 1/2 in
Overall Depth2 1/2 in
EIA UL BaseT
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 70 Degrees C
Case MaterialAluminum
Cover MaterialSteel
StandardsUL Recognized (E185318)
