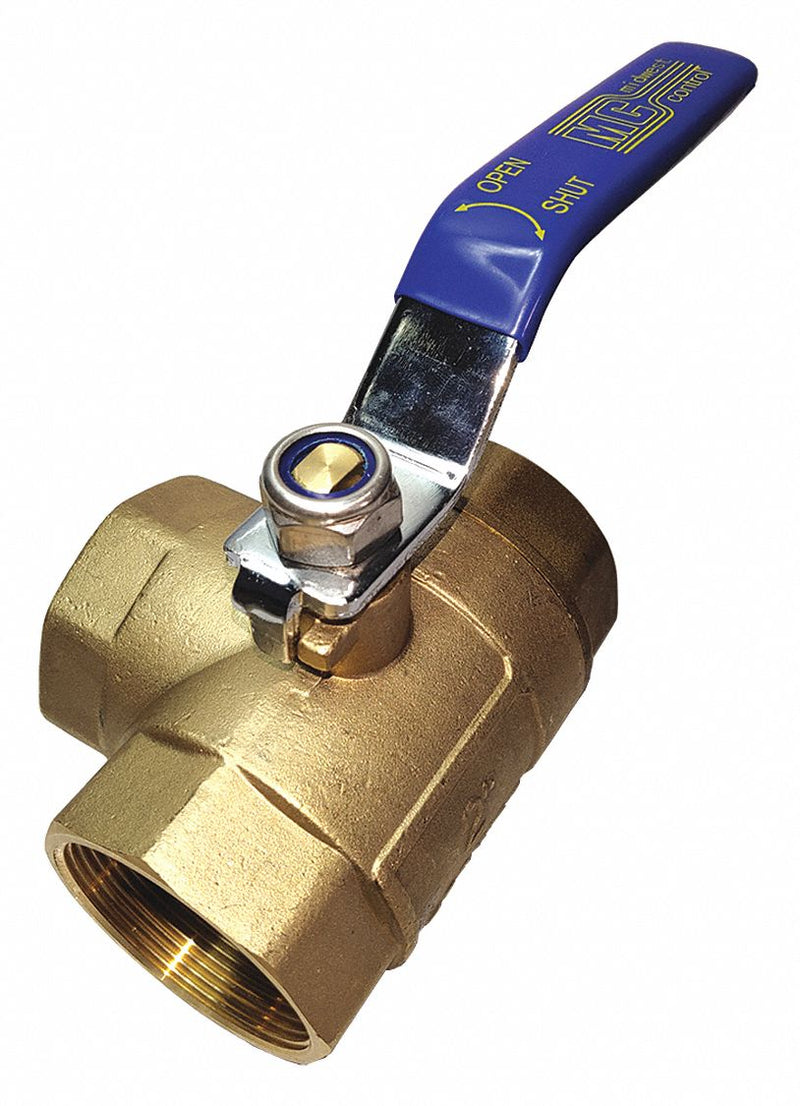

Top Brand Ball Valve, Brass, 3-Way, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT x FNPT - 1PZA1

Top BrandSKU: C1934311
MPN : 1PZA1
Weight : 1.0 lb

filler

Price:
$34.43 $55.53

Availability : Usually Ships in 3 Business Days

3-Way Brass Ball Valves, Max. pressure: 600 psi WOG Max. steam pressure: 100 psi WSP Temp. range: -4 to 350,3-way diversion valves with L flow pattern are ideal for tank selection and help simplify fluid transfers. The middle port is common and can divert to the left or right port. Reposition the handle for additional flow patterns. 2-pc., standard-port with PTFE seats, brass body, chrome-plated brass ball and stem, and a steel lever handle with vinyl grip. Blowoutproof stem.

ItemBall Valve
Body MaterialBrass
Body Style3-Way
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT x FNPT
PortStandard
Max. Pressure600 psi CWP
Max. Steam Pressure100 psi WSP
Temp. Range-40 Degrees to 350 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialSteel with Vinyl Grip
Stem MaterialBrass
Ball Valve Product GroupManual
Valve Basic Body MaterialBrass
