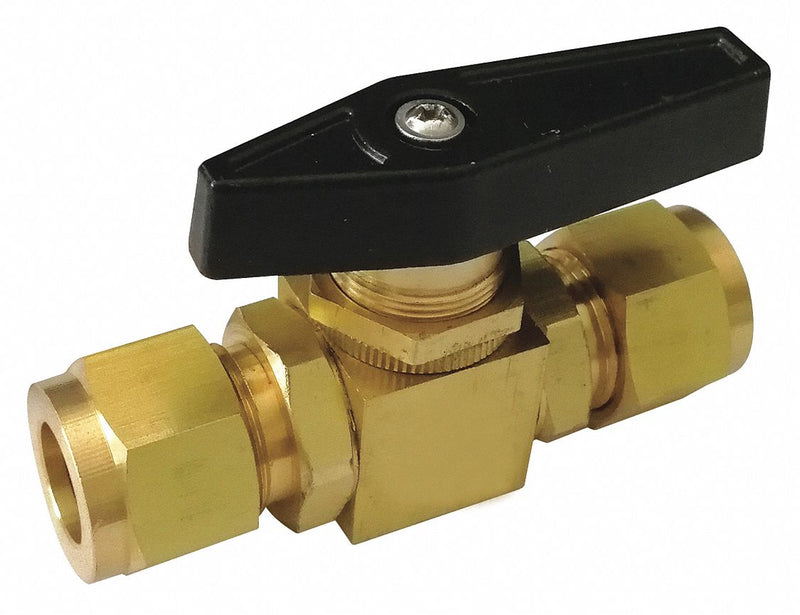

Made from an alloy of copper and zinc, this brass valve offers malleability and corrosion resistance, with added durability. Brass is stronger and harder than copper, yet more malleable than steel and iron, allowing the valve to resist cracking. It can withstand extremely high temperatures, and will not rust.
| Item | Mini Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Compression |
| Valve Structure | 2-Piece |
| Pipe Size | 3/8 in |
| Tube Size | 3/8 in |
| Connection Type | Comp. x Comp. |
| Port | Standard |
| Max. Pressure | 1500 psi CWP |
| Temp. Range | -40 Degrees to 300 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Wedge |
| Handle Material | Nylon |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | CPI(TM) Compression, Panel Mount |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
