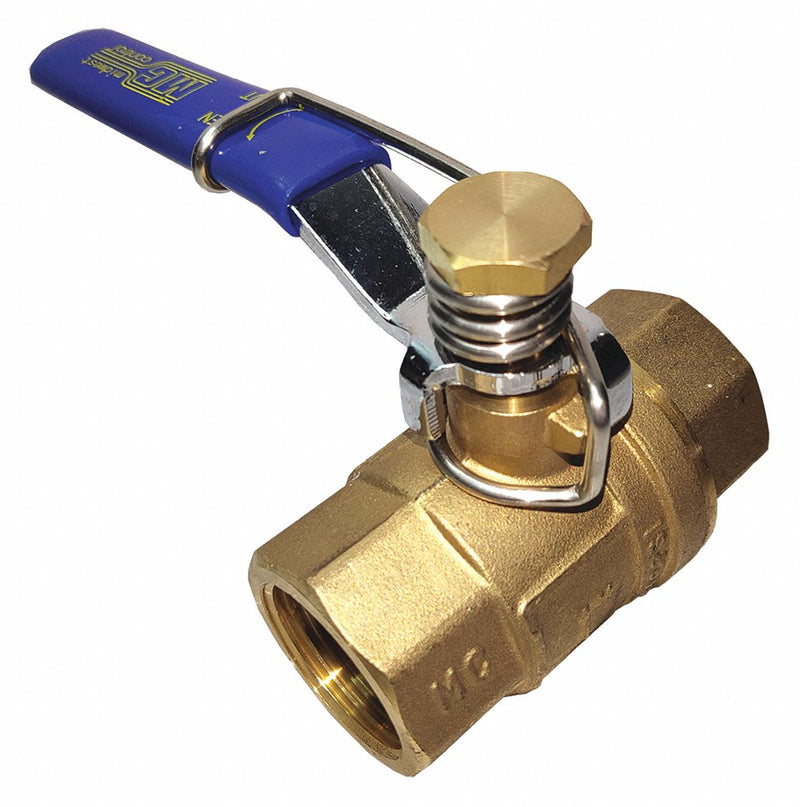

Spring-Close Brass Ball Valves, Max. pressure: 600 psi WOG Max. steam pressure: 150 psi WSP Vacuum service to 29" Hg Temp. range: -40 to 400F,2-pc., full-port valves have PTFE seats. Handle has vinyl grip. Stainless steel stem. Valve closes automatically when spring handle is released.,UL and CSA Approved.
| Item | Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1/2 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Temp. Range | -40 Degrees to 400 Degrees F |
| Ball Material | Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Spring Return |
| Handle Material | Steel |
| Stem Material | Brass |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | CSA, UL |
