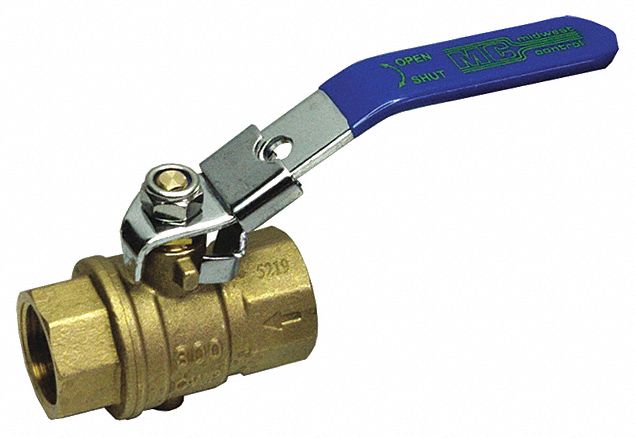

Auto Safety Exhaust Brass Ball Valves, Max. pressure: 200 psi WOG Temp. range: -40 to 350F,2-pc., full-port valves also have a 5/16" safety exhaust port and PTFE seats. Relieve downstream pressure when in closed position.,Exhaust port complies with OSHA requirements 1910.147.
| Item | Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/8 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 300 psi CWP |
| Temp. Range | -40 Degrees to 350 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Type | 1-Piece Stem |
| Handle Type | Locking Lever |
| Handle Material | Carbon Steel |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | Auto Drain |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | ASTM |
