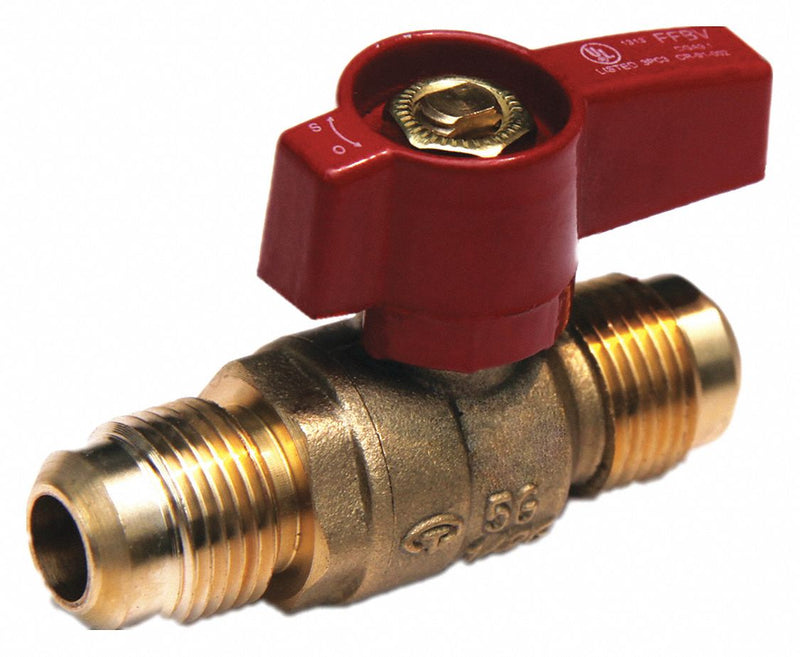

Has a 1/4-turn aluminum handle and an ASTM 36000 forged brass body, cap, and ball. Valve flows in both directions.,1/2 psi for indoor appliance connections per ANSI Z21.15 and CSA 9.1.,5 psi for indoor shutoff per CGA 91-002 and ASME B16.44
| Item | Gas Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Flare |
| Valve Structure | 2-Piece |
| Pipe Size | 5/8 in |
| Connection Type | Flare x Flare |
| Port | Standard |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -4 Degrees to 250 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Tee |
| Handle Material | Aluminum |
| Stem Material | Brass |
| Body Seal Material | Buna-N |
| Hose I.D. | 5/8 in |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | CSA, UL |
