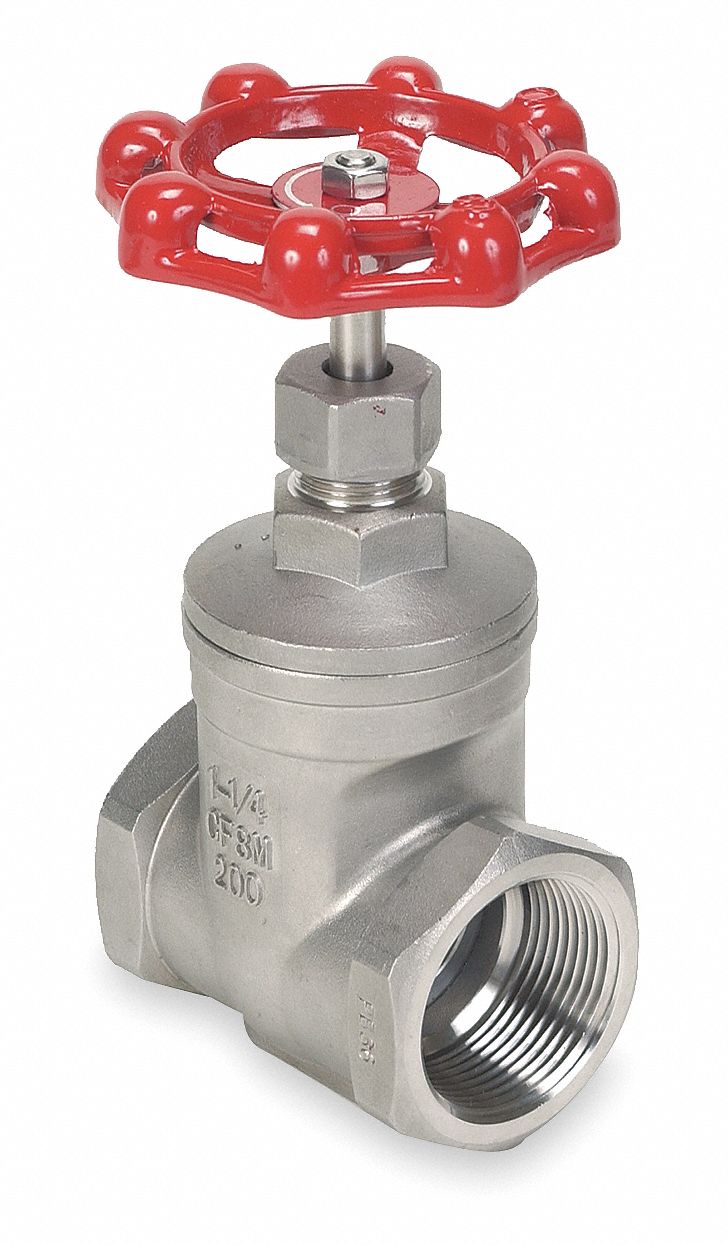

Stainless Steel Gate Valves,Ideal for refinery, chemical, and other process applications.,Class 200 Vendor, Max. pressure: 200 psi WOG Max. temp.: 365F,Corrosion-resistant construction with 316 stainless steel nonrising stem, bonnet, body, and wedge. Aluminum handwheels.
| Item | Gate Valve |
| Valve Class | Class 200 |
| Body Material - Valves | 316 Stainless Steel |
| Connection Type | FNPT |
| Pipe Size - Valves | 1 1/4 in |
| Max. Water Pressure - CWP | 200 psi |
| Valve Max. Fluid Temp. | 365 Degrees F |
| Valve Stem Type | Non-Rising |
| Top of Handle to Inlet Center | 5 3/25 |
| Inlet to Outlet Length | 2 19/20 in |
| Stem Material | 316 Stainless Steel |
| Wedge Material | 316 Stainless Steel |
| Handle Material | Aluminum |
| Handle Type | Hand Wheel |
