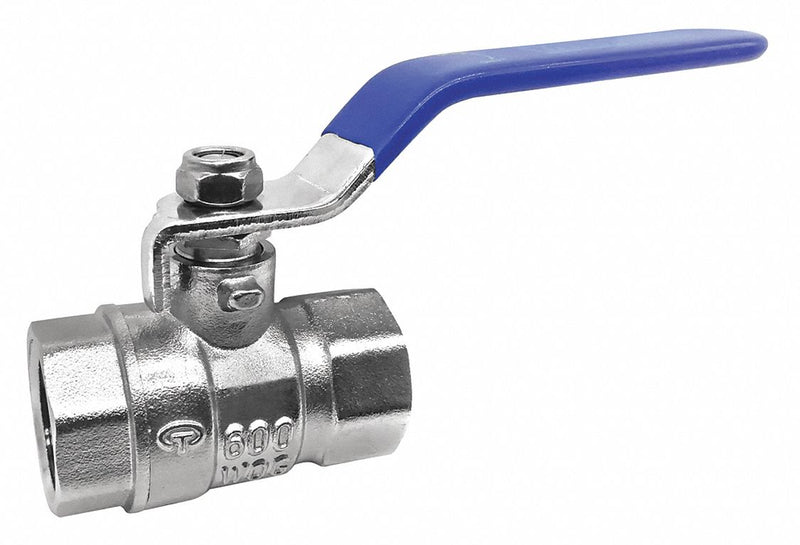

Top Brand Ball Valve, Nickel-Plated Brass, Inline, 2-Piece, Pipe Size 1 in, Connection Type FNPT x FNPT - 107-815-NF

Top BrandSKU: C1934560
MPN : 107-815-NF
Weight : 0.96 lb
filler

Price:
$30.92 $37.71

Availability : Usually Ships in 1-3 Business Days

Made from an alloy of copper and zinc, this brass valve offers malleability and corrosion resistance, with added durability. Brass is stronger and harder than copper, yet more malleable than steel and iron, allowing the valve to resist cracking. It can withstand extremely high temperatures, and will not rust.

ItemBall Valve
Body MaterialNickel-Plated Brass
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure400 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range0 Degrees to 356 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialSteel
Stem MaterialBrass
Body Seal MaterialPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialBrass
StandardsANSI B1.201, MSS SP-110
