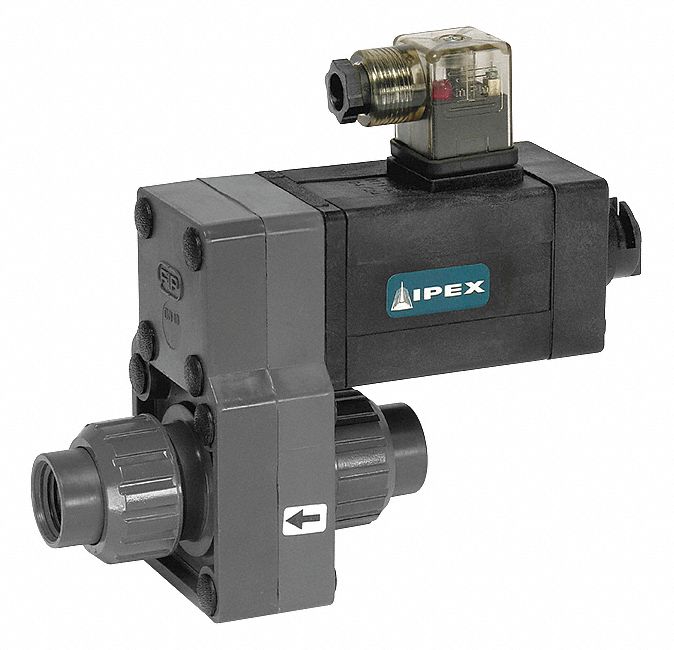

Solenoid Valve; Solenoid Valve Product Group: Plastic Solenoid Valve; Valve Ways and Positions: 2-Way/2-Position; Valve Configuration: Normally Closed; Media - Valves: Fluids With Max Viscosity 38 cSt, Water; Pipe Size - Valves: 1/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Light Oil: 90 psi @ 73 Degrees F; Max. Operating Pressure Differential Water: 90 psi @ 73 Degrees F; Environmental Rating - Valves: Corrosive, Indoor, Outdoor; Voltage: 120V AC; Coefficient of Volume: 0.95; Body Material - Valves: PVC; Coil Insulation Class: F; Orifice Dia.: 5/16 in; Safe Working Water Pressure: 30 psi; Hz: 50; Operation: Direct Acting; Watts: 12 W; Max. Flow Rate: 22 gpm; Coil Enclosure: Watertight; Electrical Connections: Wire Leads; NEMA Rating: 4; Overall Length: 3 5/8 in; Max. Fluid Temp.: 140 Degrees F; Overall Width: 2 in; Overall Height: 5 1/32 in
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Plastic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Fluids With Max Viscosity 38 cSt, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Light Oil | 90 psi @ 73 Degrees F |
| Max. Operating Pressure Differential Water | 90 psi @ 73 Degrees F |
| Environmental Rating - Valves | Corrosive, Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 0.95 |
| Body Material - Valves | PVC |
| Coil Insulation Class | F |
| Orifice Dia. | 5/16 in |
| Safe Working Water Pressure | 30 psi |
| Hz | 50 |
| Operation | Direct Acting |
| Watts | 12 W |
| Max. Flow Rate | 22 gpm |
| Coil Enclosure | Watertight |
| Electrical Connections | Wire Leads |
| NEMA Rating | 4 |
| Overall Length | 3 5/8 in |
| Max. Fluid Temp. | 140 Degrees F |
| Overall Width | 2 in |
| Overall Height | 5 1/32 in |
