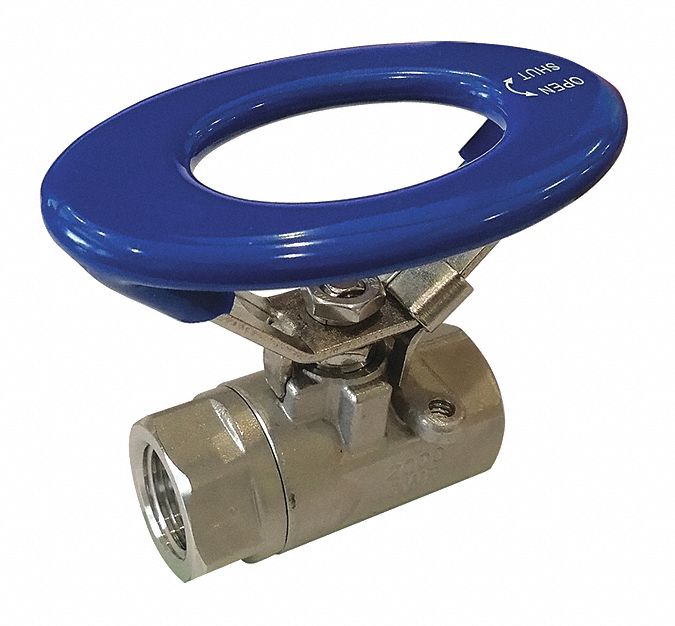

316 Stainless Steel Ball Valves with Handle Options, Max. pressure: 1000 psi WOG Temp. range: -25 to 450F,Stainless steel handle with vinyl grip. Bottom-loaded stem resists blowout. FNPT connections. Vacuum service to 29" Hg. 2-pc. construction and PTFE seats. Suitable for use with water, oil, and gas in most corrosive industrial environments.
| Item | Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 2 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 1000 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -25 Degrees to 450 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Locking Oval |
| Handle Material | 304 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASTM A351-ZF8M |
