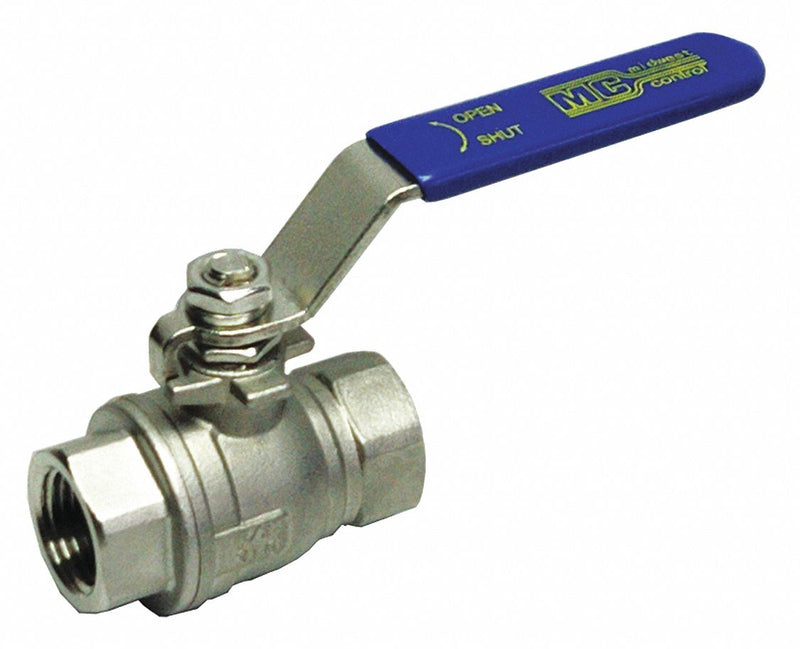

Ball valve is suitable for use with water, oil, and gas in most corrosive industrial environments.
| Item | Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -60 Degrees to 450 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | MSS-SP-110 |
