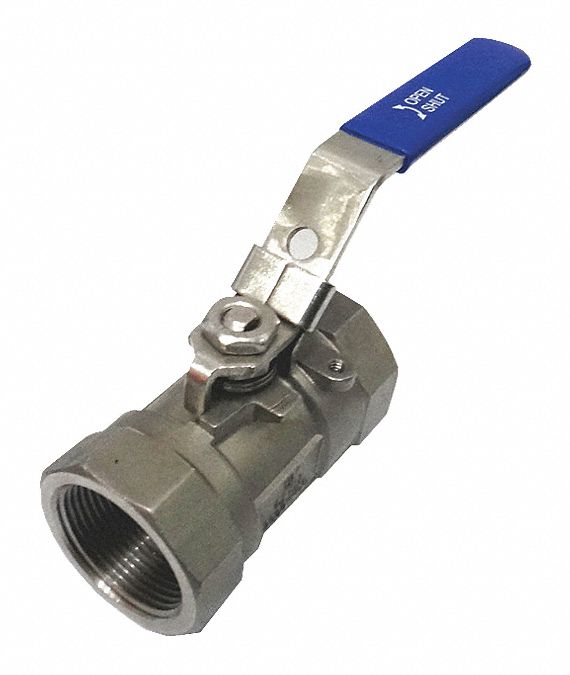

Top Brand Fire Safe Ball Valve, 316 Stainless Steel, Inline, 1-Piece, Pipe Size 3/4 in - 32H982

Top BrandSKU: C1934507
MPN : 32H982
Weight : 0.8 lb
filler

Price:
$241.24 $294.20

Availability : Usually Ships in 1-3 Business Days

Fire-Safe Stainless Steel Ball Valves, Max. pressure: 2000 psi Temp. range: -20 to 450F,Unibody design without endpiece allows safe removal without exposure to a potentially dangerous pressure release. RPTFE seats and FNPT connections.,Meet API 607 Fire-Safe; ASME B16.34.

ItemFire Safe Ball Valve
Body Material316 Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure1-Piece
Pipe Size3/4 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure2000 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLocking Lever
Handle MaterialSteel
Stem MaterialStainless Steel
Body Seal MaterialRPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsAPI 607, ASME B16.34
