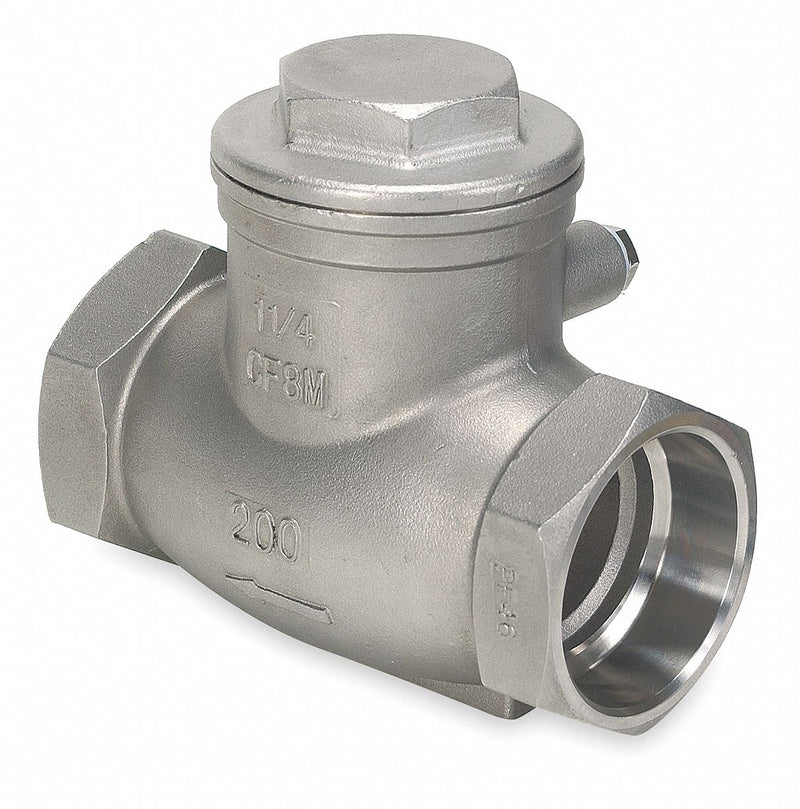

316 Stainless Steel Swing Check Valves, Max. pressure: 200 psi Max. temp.: 353F,Provide excellent corrosion and chemical resistance. Horizontal mounting. For use in plumbing and heating applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | 316 Stainless Steel |
| Pipe or Tube Size - Check Valves | 2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 5.6 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | PTFE |
| Max. Temp. - Valves | 350 Degrees F |
| Min. Temp. - Valves | -4 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | 200 psi WSP |
| Flow - Valves | 130 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 5 15/32 in |
| Width | 3 5/16 in |
| Overall Height | 5 15/32 in |
| Cap to Inlet Center | 3 5/32 in |
| Hex Size | 2 47/64 in |
