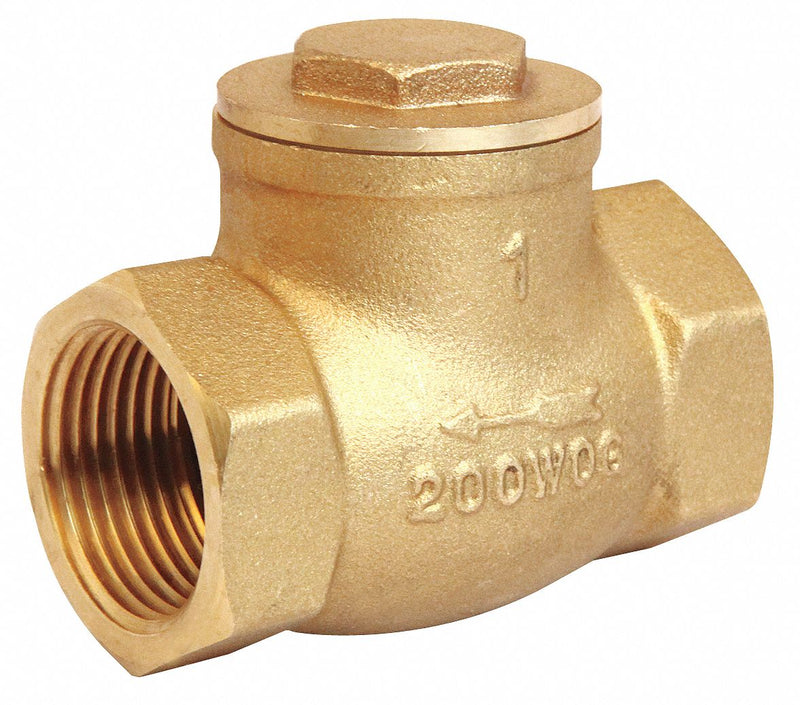

Allows flow in one direction and helps prevent fluid backflow this swing check valve is suitable for use in plumbing and heating applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Brass |
| Pipe or Tube Size - Check Valves | 1/2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.75 to 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Brass |
| Max. Temp. - Valves | 180 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seat Material - Check Valves | Brass |
| Flow - Valves | 10 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 2 1/16 in |
| Cap to Inlet Center | 1 5/16 in |
| Hex Size | 1 1/32 in |
