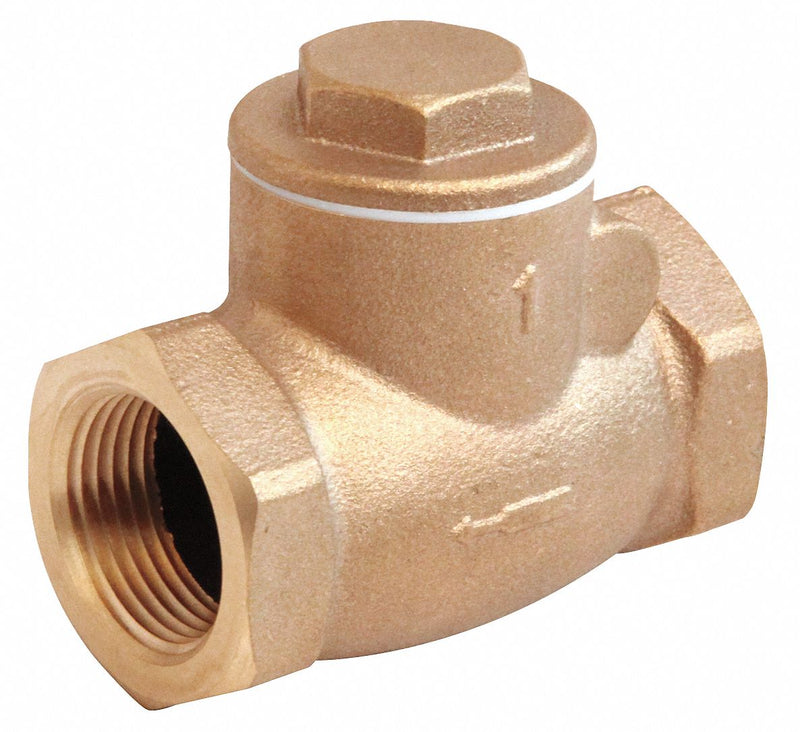

Allows flow in one direction and helps prevent fluid backflow this MILWAUKEE VALVE swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 1/4 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.75 to 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | PTFE |
| Max. Temp. - Valves | 406 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 300 psi |
| Max. Steam Pressure - Valves | 150 psi WSP |
| Seat Material - Check Valves | Bronze |
| Flow - Valves | 4 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 2 1/16 in |
| Cap to Inlet Center | 1 5/16 in |
| Hex Size | 29/32 in |
| Standards | ASTM B62, MSS-SP-80 |
