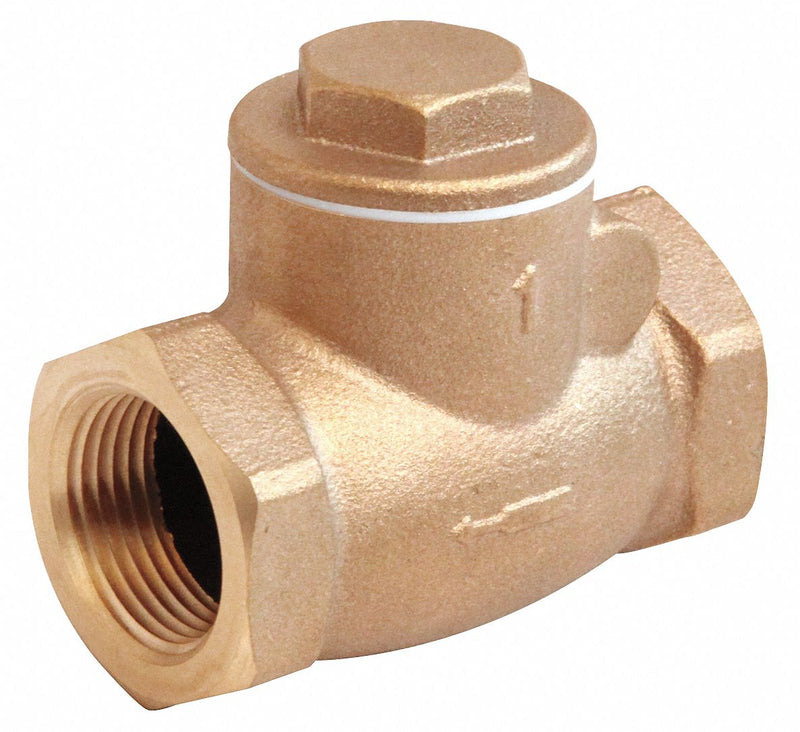

Top Brand Check Valve, 2 1/2 in, Single, Inline Swing, Bronze, FNPT x FNPT - 10F296

Top BrandSKU: C1911130
MPN : 10F296
Weight : 6.89 lb


$308.32 $376.00

Availability : Usually Ships in 3-5 Business Days

Allows flow in one direction and helps prevent fluid backflow this swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Swing
Body Material - ValvesBronze
Pipe or Tube Size - Check Valves2 1/2 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.75 to 1 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesBronze
Max. Temp. - Valves406 Degrees F
Min. Temp. - Valves-20 Degrees F
Max. Water Pressure - Valves200 psi
Max. Steam Pressure - Valves125 psi WSP
Seat Material - Check ValvesBronze
Flow - Valves140 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose
Length5 11/16 in
Cap to Inlet Center3 7/16 in
Hex Size3 3/8 in
StandardsASTM B62, MSS-SP-80
